Product Information
Specification
| LAN | 1 x RJ-45 STP, “Data” Input Port |
| POE | 1 x RJ-45 STP, “Data + Power” Output Port |
| AC Connector | 1 x AC Input power socket, IEC-320 C6 |
| Ultra PoE (60W) | 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) |
| LED Indicator | System: Power x 1 (Green) |
| Data Rate | 10/100/1000Mbps |
| Unit Output Voltage | DC 50V, 1.2A |
| Power Requirements | 100-240V AC @50/60Hz, 1.5A max. |
| Power Consumption | 60 watts max. |
| PoE Power Supply Type | End-Span + Mid-Span |
| Power Pin Assignment | Pair 1 End-Span: 1/2(+), 3/6(-) |
| PoE Power Output | DC 50V / 60-watt PoE via 4-pair |
| Operating Temperature | 0 ~ 50 degrees C |
| Part Number | POE-173 |

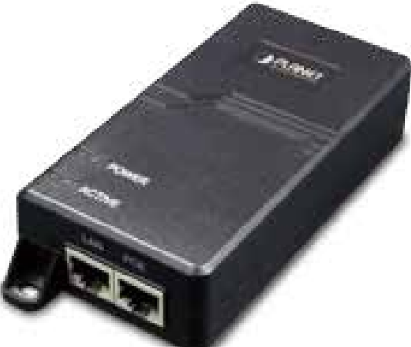

60-WATT ULTRA POWER OVER ETHERNET INJECTOR - POE-173
Description :-
PLANET POE-173 Ultra Power over Ethernet Injector provides a maximum of up to
60-watt power and high speed Ethernet data connection anywhere in your network
infrastructure.

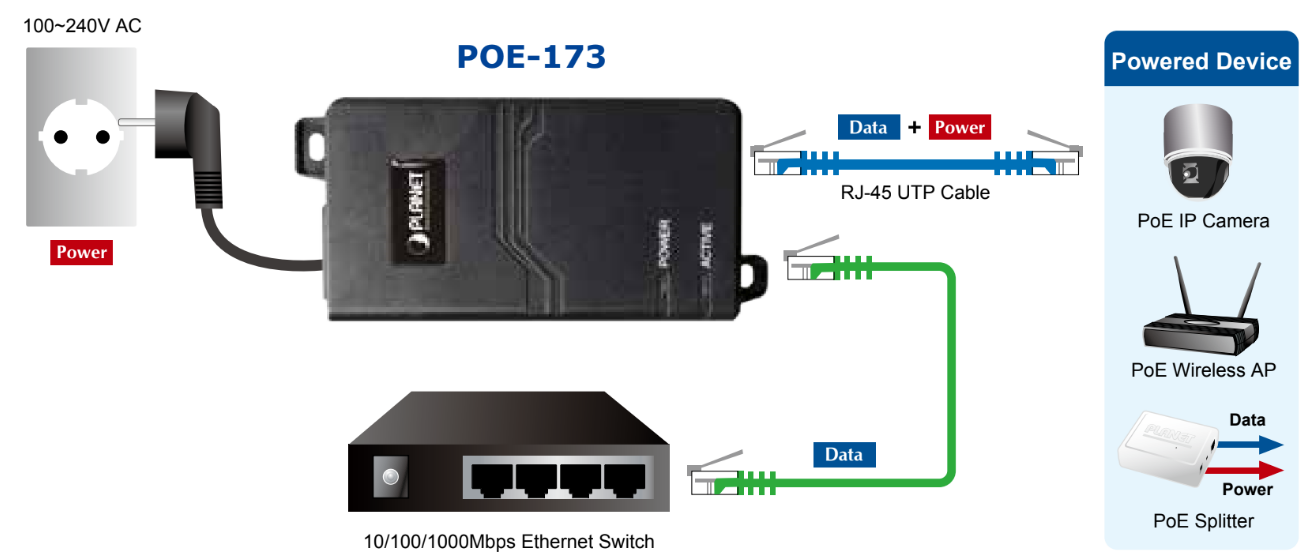

Application :-
Due to the backward capability of IEEE 802.3at/af PoE standard, the Ultra PoE Injector can directly connect with any IEEE 802.3at/af end-nodes such as
PTZ (Pan, Tilt & Zoom) speed dome network cameras, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points.
