Product Information
Specification

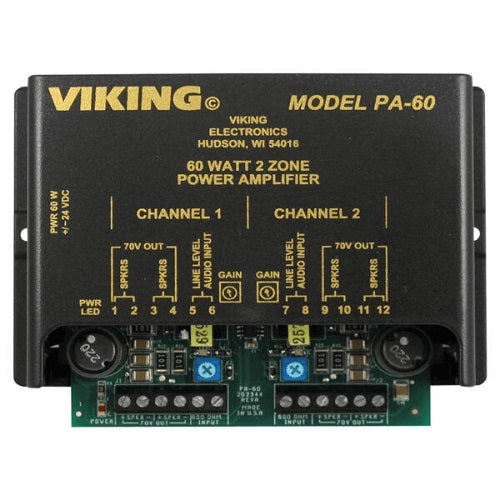

Viking PA-60 – 60 Watt Compact Two Zone Paging Amplifier
About :
The PA-60 is a versatile amplifier that can drive up to 60 8-Ohm paging speakers or 100 70V/25V speakers. It can function as a single large amplifier or a two-zone amplifier, with independent inputs and gain controls for each zone. This allows for customized volume levels, ideal for different environments like warehouses and offices. The PA-60's efficient design minimizes heat, increases reliability, and reduces costs. It can be integrated with Viking's paging products and used to expand existing paging systems. Additionally, it supports clock-controlled tones and multiple tone options for specialized alerts.
Also Known As :
Amplifier, Paging Amplifier, Voice Paging Amplifier, Audio Paging Amplifier, Paging Audio Booster, Paging Signal Amplifier
Specification :
|
Paging Unit Type |
Amplifier |
| Power | 100 – 240 VAC 50/60Hz to +/- 24VDC 60w UL listed adapter provided |
| Environmental | 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity |
| Paging Output | 60 watts – powers up to (60) 8 ohm speakers or (100) 70V or 25V speakers |
| Maximum Gain | 22dB |
| Input Sensitivity | 1.25Vrms |
| Harmonic Distortion @ 1kHz |
-60dB |
| Frequency Response |
40Hz to 20kHz |
| Connections |
(2) 6 position screw terminal block |
Core Features :
• 60 Watts of total paging power
• Two separate amplified zones of paging
• Drive up to (60) 8 Ohm speakers
• Drive up to (100) 70V or 25V speakers
• Separate input gain controls for each channel
• Voltage, current, thermal, and short circuit protected
• Super high efficiency allows high power in a small package
Download PDF Spec Sheet
