6 Fiber 62.5 Teragain Loose Tube Multimode Single Jacket Dielectric Cable 110066G01

Product Information

Specification

About :

Loose tube cables are the product of choice as the backbone in outside plant (OSP) environments. The durable loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers are placed inside filled buffer tubes containing PFM gel.

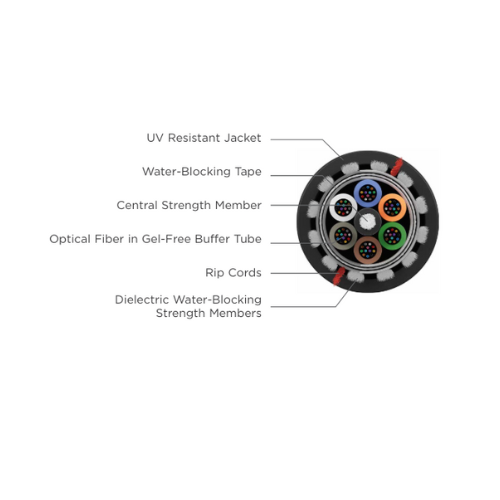

The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). The core is wrapped with flexible strength members covered with a water blocking tape, then encased with a black jacket. A ripcord is included under the jacket for ease-of entry.

Also Known as :

6 Fiber teragain Cable, Outside Plant Cable, Multimode Cable, Single Jacket Cable.

Specifications :

Standards Compliance:

• Telcordia GR-20-CORE
• RDUP PE-90 Designation MLT
• ICEA S-87-640-2011
• RoHS-compliant

Applications:

• Underground duct and lashed aerial
• Trunk, distribution and feeder cable
• Local loop, metro, long-haul and broadband network

Benefits:

• High fiber density
• Multiple network applications
• Metallic option offers ease of location, dielectric design eliminates grounding issues
• Non-sticky gel speeds fiber access and cleanup
