Product Information

Specification

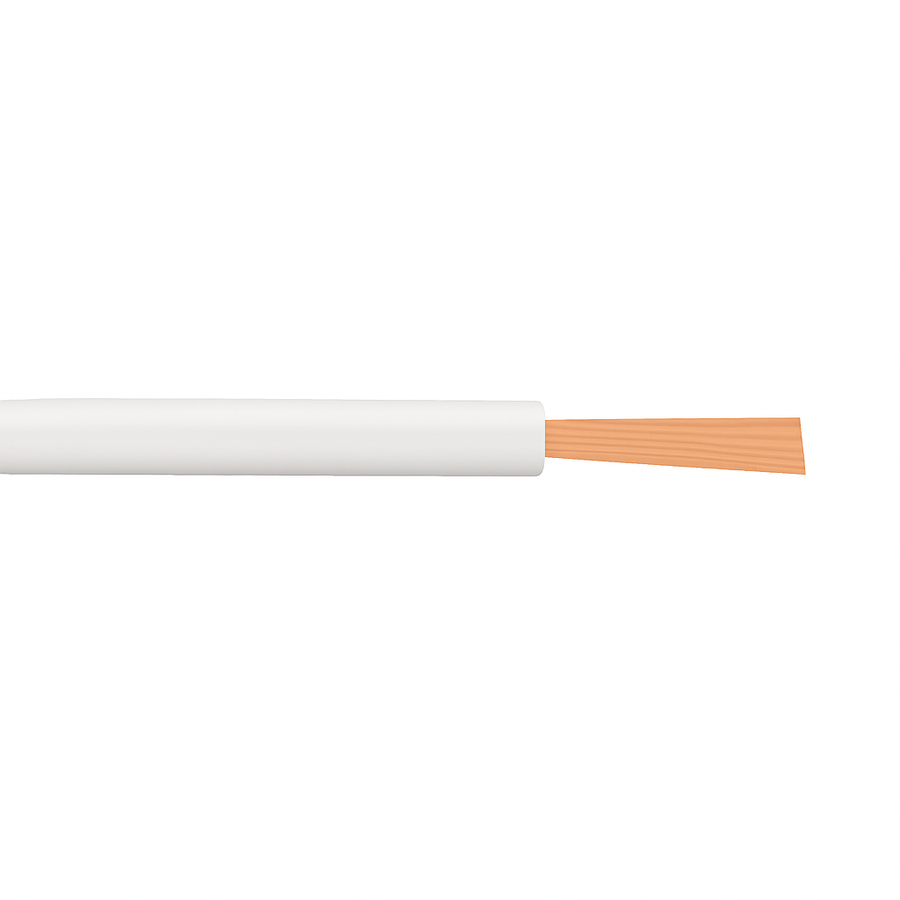

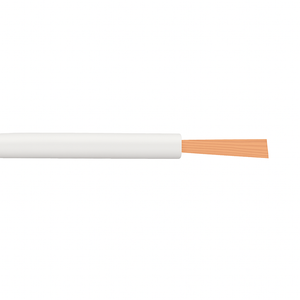

6 AWG 19 Strands MTW UL1283 Bare Copper White Wire

Applications:

The stranded machine tool wire is an electrical wire developed for use in the internal wiring for electrical appliances and equipment, serving both in the indoor and outdoor applications in the domestic set up. Due to its exceptional electrical conductivity, the cable is also used in the panels and meters internal wiring, as well as point to point wiring. The lead wire is flame-retardant and has a high-temperature rating of 105ºC at 600V and 90ºC at 1,000V, which implies that this electrical cable can work efficiently in harsh climatic conditions.

Also Known As:

6 awg machine tool wire, 6 awg lead wire cable, 6 awg lead cable, 6 awg lead wire, 6 machine tool wire, 6 lead wire cable, 6 lead cable, 6 lead wire, 6 awg lead covered wire, 6 awg electrical lead wire, 6 awg high voltage lead wire, 6 awg type ul.

Standards:

• The UL Style 1015 of voltage rating 600V and temperature of 105°C
• The UL Style 1032 of voltage rating 1,000V and temperature of 90°C
• UL VW-1 Flame Test
• RoHS Compliant

Construction

Conductors:

This machine tool wire conductor is made up of copper wire. It comes in two different conductor types; stranded or solid. Some of the conductors are bare while others are tinned. Since copper is highly reactive, it is appropriate to use tinned copper wire in areas where there are more chemical reactions. Stranded conductor serves you right in applications that need more flexibility while the solid wire is good for systems where cable strength is the top requirement.

Insulation:

The machine tool wire cable has a color-coded Polyvinyl Chloride (PVC) material that serves as the insulation material for the stranded tinned copper hook up wire. This PVC has ultra-high strength and durability, providing reliable security to the conductors.

Specifications:

• AWG: 6
• Cond. Strand: 19/.0372
• Insul. Thickness (mils): 60
• Nom. O.D. (inch): 0.298
• Weight (lb./1,000 ft): 109.5

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
