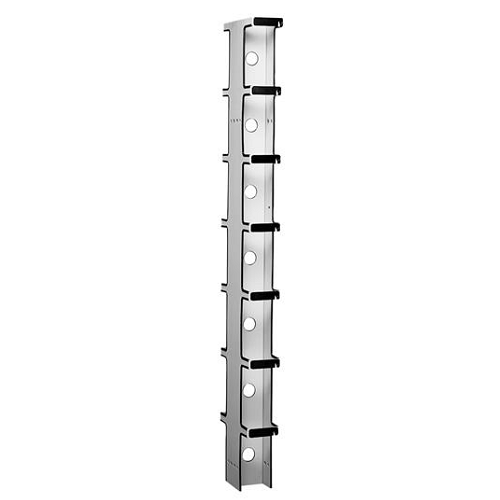

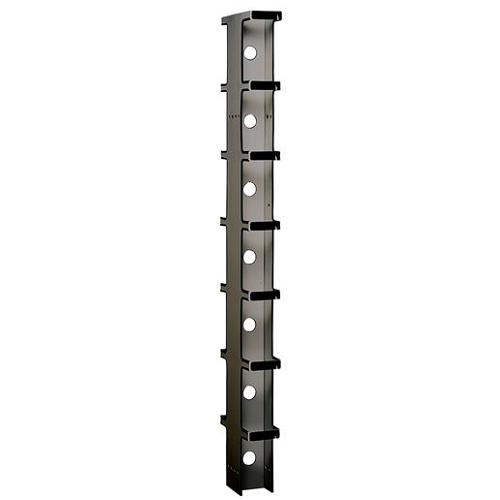

58U Double Sided Wide Vertical Cabling Section 11729-108

Product Information

Specification

Description:

These space-saving ducts, with locking latches, hold and separate wiring for a more organized and managed equipment room installation. Provides convenient cable run between equipment racks. Conceals cable for a more attractive installation. 2.50” (63.5 mm) diameter ports spaced at 11.625” (295.28 mm) intervals allow for convenient cable and wiring pass through. Vertical slots secure optional Saf-T-Grip Cable Management Straps for neatly bundled cables.

Features:

• Bolts to CPI Standard Rack, Universal Rack, Quadra Rack 4-Post Frame and Quadra Rack Server Frame

• Includes formed cabling section, lockable cabling latches - 12” (300 mm) between latches, protective edge guards and mounting hardware

• 6”W x 12.75”D (150 mm x 323.9 mm); double-sided cable trough

• 2.5” (64.0 mm) diameter pass-through ports every 11.62” (295.1 mm)

• 9’ (2.7 m) version consists of a 7’ (2.1 m) section with a 2’ (0.6 m) extension

• Mounting hardware included
