52U Vertical Cable Manager for Zeta Frame Cabinet 38646-E32
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Cabinet Width | 29.5"W (750 mm) |
| Height (U) | 52U |
| Weight (Lbs) | 10 |
| Width | 29.5" (750 mm) |
| Size | Short Finger |
| Finish/ Color | Glacier White |
| Part No. | 38646-E32 |
Description:

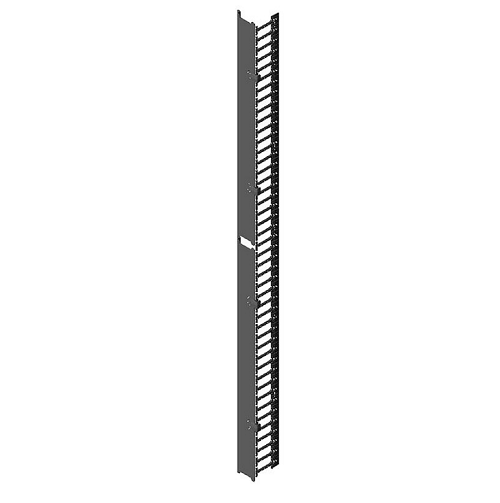

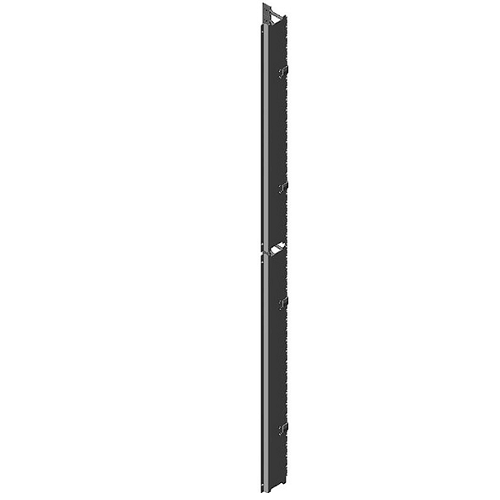

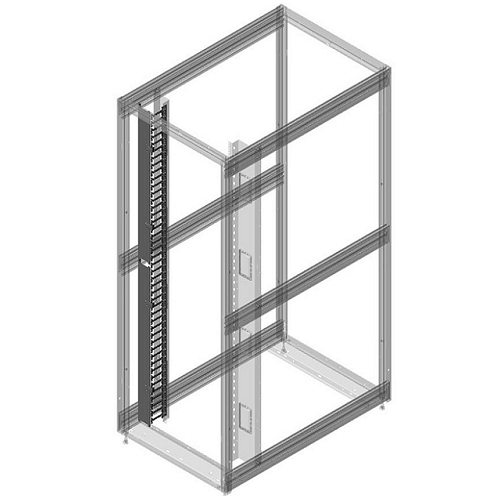

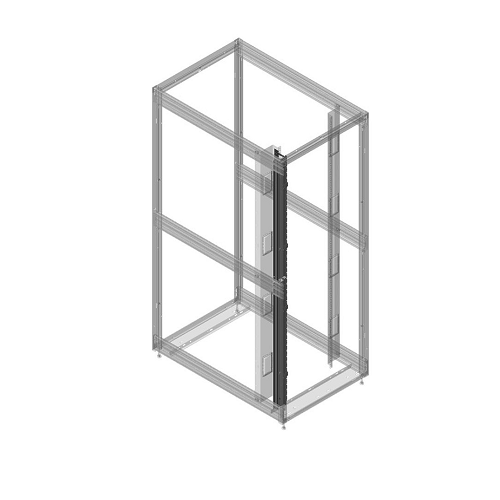

Vertical Cable Manager for Zeta Frame Cabinet.
Features:
• Fully compatible with Air Dam Kit and Cable Lashing Panel
• Openings between fingers align with each U on the mounting rail
• Short or long plastic T-shaped finger options
• Rail setback:
- 7-1/4 (184 mm) for Managers with long fingers
- 4-3/4 (121 mm) for Managers with short fingers
• Long fingers pass up to (48) cables per U space through openings
• Short fingers pass up to (24) cables per U space through openings
• Hinged cover included with managers in cabinets wider than 600 mm
• Material: aluminum panels, fingers are black, hinges/latches are blue
• Finish: Black or Glacier White; fingers are black, hinges/latches are blue
• Select part number to match cabinet usable height, width and color of the cabinet
Download PDF Spec Sheet
