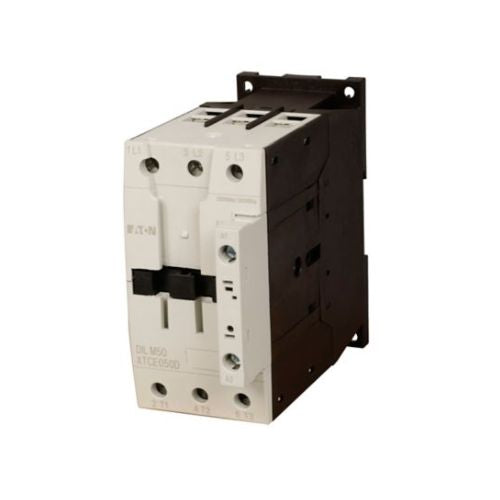

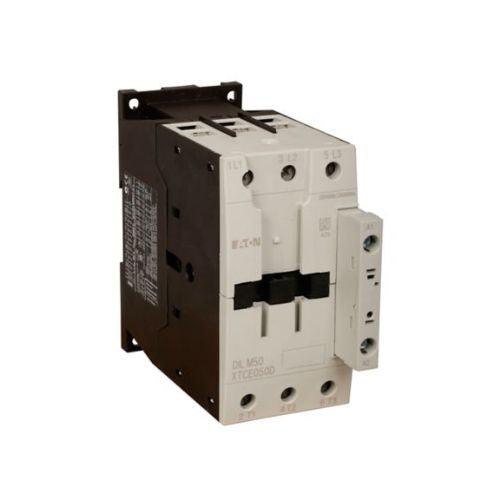

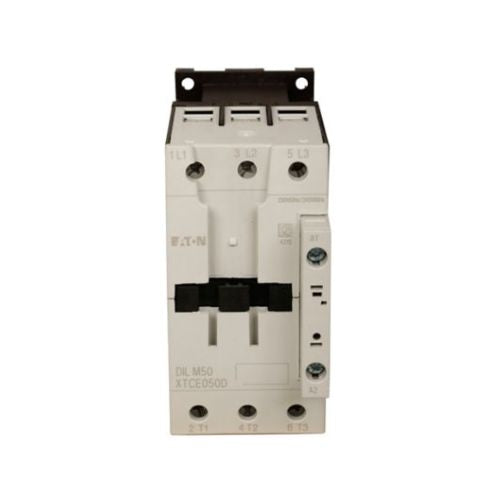

50Amp 110/120Vac Three-Pole IEC Contactor XTCE050DS1A
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
A contactor is an electrical device designed to remotely switch an electrical power circuit. It is typically used where a large amount of power needs to be switched, especially in commercial and industrial applications.
Also Known As :
Contactor, Motor Starter, Electric Contactor, Magnetic Contactor, Power Contactor
Specification :
| Amperage Rating |
50A
|
| Number of poles | Three-pole |
| Type | Full voltage non-reversing contactor |
| Coil | 110-120 Vac, 50/60 Hz |
| HP rating - max |
3, 7.5, 10/ 15, 20, 40, 50 hp (1/3PH @115,200,230/200,230,460,575 V)
|
| Frame size | 55 mm |
| Terminals | Screw terminals |
| Product Length/Depth | 1 in |
| Product Height | 1 in |
| Product Width | 1 in |
| Product Type |
Contactor
|
| Warranty |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
|
| Certifications |
UL Listed
CSA Certified EN 60947 IEC 60947 |
| Frequency rating |
50-60 Hz
|
| Contact configuration |
1 NO, 1 NC
|
| Continuous ampere rating |
50 A
|
| Series |
XT IEC
|
| Operation |
Non-reversing
|
Features :
• Pole Configuration: Contactors can come in several pole configurations, such as single-pole, double-pole, and three-pole, depending on the application.
• Enclosure Types: They can be enclosed in a variety of casings to protect against dust, moisture, and mechanical damage.
• Auxiliary Contacts: Often, contactors include auxiliary contacts that can be used for signaling or interlocking purposes.
Download PDF Spec Sheet
