500kHz Current Probe CP6550-EU
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Active Current |
| Measurement Ranges | 200 mV/A / 20 mV/A |
| Current (DC + peak AC) | 5 A / 50 A |
| Bandwidth | DC - 500 kHz |
| Rise and Fall Time | 0.7 µs (typ.) |
| Battery Life | 8 hours |
| Max. Cable Diameter | 11 mm (0.43") |
| Dimensions |
262mm x 79mm x 36mm (10.3" x 3.15" x 1.4") |
| Weight | 260 g w/o battery |
| RoHS 2 | Compliant |
| Part No. | CP6550-EU |
500kHz Current Probe
Description:
Active clamp style current probes extend the functionality of your oscilloscope.
Model CP6550 has dual sensitivity ranges, 200 mV/A and 20 mV/A for current measurements up to 5 A or 50 A, respectively. Bandwidth in both ranges up to 500 kHz. Powered by 9 V battery (not included) or AC power adapter (included).
Select either product modifier EU for European style power adapter (CT3957-EU) or NA for North American style power adapter (CT3957-NA).
Features:
• Compact stylish body
• Dual sensitivity ranges
• 500 kHz bandwidth (-3 dB)
• Over-range indicator

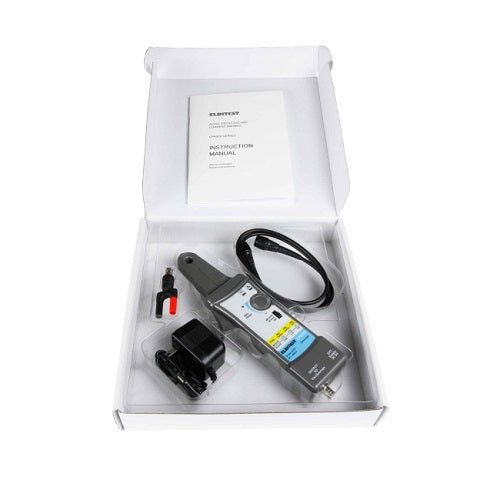

Kit contains:
• Current probe
• Insulated BNC Cable
• BNC to Banana Plugs Adapter
• AC Power Adapter
• User Manual
Download PDF Spec Sheet
