50 µm multimode Plenum 2 F Reel In A Box Zipcord Tight-Buffered Cable 002T58-31390-B2

Product Information

Specification

About:

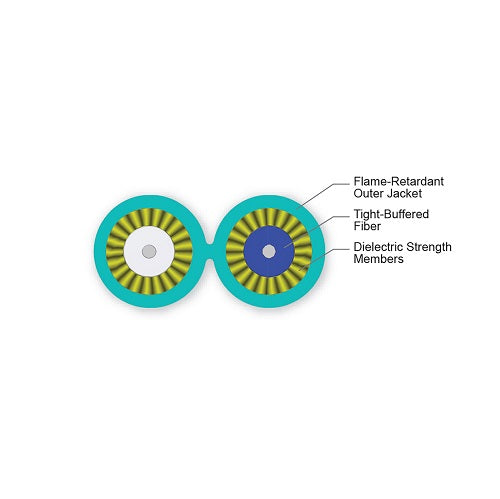

Reel in a Box is Corning's innovative packaging solution for small reels of fiber optic cable in all inside plant applications, such as collocation data centers and wireless projects. This packaging solution provides features that enable our customers greater efficiencies than before. Corning zipcord cables are designed for interconnect applications. Two 900 μm buffered fibers are surrounded by aramid yarn strength members and a flame-retardant jacket. This cable design offers mechanical durability and flame resistance that meet the requirements of the National Electrical Code (NEC) Article 770.

Specifications:

Product Number: Number: 002T58-31390-B2
EAN Code : 4056418153308
Environment: Indoor
Cable Type:: Tight-Buffered
Product Type : Interconnect
Fiber Category:::: 50 µm MM (OM4)
Flame Rating: Plenum (OFNP)
:Application: General Purpose Horizontal,  Plenum,  Vertical Riser
Fiber Count: 2
RoHS : Free of hazardous substances according to RoHS 2011/65/EU
Outer Jacket Color::: Aqua
Outer Jacket Material: Flame-retardant
Tensile Strength Elements and/or Armoring—Layer 1:—Layer 1: Dielectric strength members
Number of Subunits: 2
Tight Buffer Color: Blue, White
Flame Rating: Plenum (OFNP)
Fiber Code: T
Fiber Type: Multimode
Performance Option Code: 90
Fiber Core Diameter: 50 µm
Minimum Effective Modal Bandwidth (EMB): 4700 MHz*km / -
Maximum Attenuation: 2.8 dB/km / 1.0 dB/km
Min. Overfilled Launch (OFL) Bandwidth: 3500 MHz*km / 500 MHz*km
Serial 1 Gigabit Ethernet: 1000 MHz*km / 600 MHz*km
Serial 10 Gigabit Ethernet: 550 MHz*km / -
Wavelengths: 850 nm / 1300 nm
Fiber Category: OM4

Features:

• “Countdown” print indicates available cable remaining on the reel, providing easier inventory management

• Stackable boxes make storage more manageable

• Smaller reel offerings mean smaller cable lengths than would normally be available

• Cable cutting at Corning lowers operating expenses for our distributors and end users
