5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out TPL-SG2005P-PD

Product Information

Specification

About :

A Gigabit Desktop Switch is a compact and high-performance network device designed to expand network connectivity by providing multiple Gigabit Ethernet ports. It is an ideal solution for small offices, home offices, and personal use where fast and reliable wired network connections are needed.

Also Known As :

Ethernet Switch, Network Switch, LAN Switch, Gigabit Hub, Gigabit Switch, Desktop Ethernet Switch, Desktop Network Switch

Specification :

Features :

• Up to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.

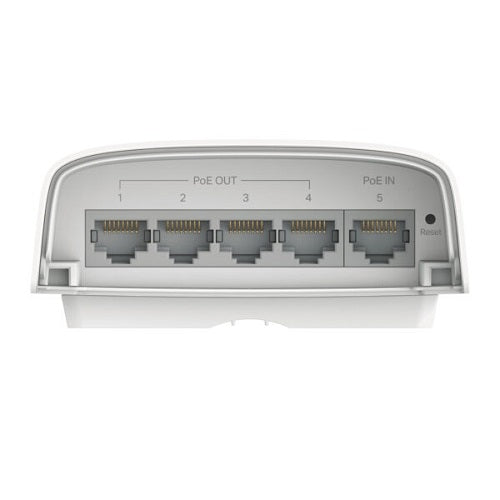

• 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.

• Outdoor Weatherproof: IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions.

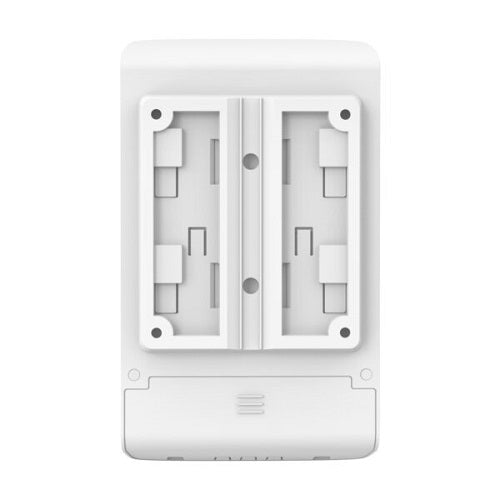

• Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs.

• Centralised Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management.

• Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN.
