5 FT 24 AWG UTP Copper Patch Cord Off White UTP6AX5
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:

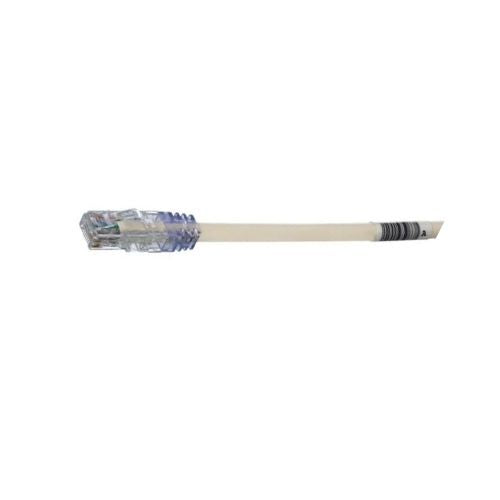

• The TX6A 10Gig Cat 6A UTP Patch Cord in Off-White is a 5-foot, 0.250-inch (6.4mm) diameter, unshielded, twisted pair (UTP) cord constructed with 24 AWG solid copper conductors.
• It features high-performance modular plugs and a CM-rated cable, engineered to support reliable 10 Gb/s data transmission. Its design reduces alien crosstalk without requiring additional shielding.
• The tangle-free latch prevents snags and ensures a quick release, simplifying moves, adds, and changes.
• This Off-White patch cord is also enabled with RapidID featuring pre-installed barcodes for easy port mapping using RapidID software
Also Known As:
Patch Cord, Patch Cable, Ethernet Cable, Network Cable, LAN Cable, Twisted Pair Cable, UTP Copper Patch Cord.
Specification:
| Product Type | Patch Cord |
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing |
| Conductor Gauge (AWG) | 24 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Polyvinyl Chloride |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft) | 5 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Color | Off White |
| Flammability Rating | CM |
| Plug Type | 8 Position |
| UPC |
613056769991 |
Features:
• 100% performance tested confidence that each patch cord delivers specified performance
• Flexible cable design improved cable management in high density applications enabling easier installations
• Center de-embedded plug performs in center of ANSI/TIA-568.2-D component range ensuring interoperability and superior performance
• Integral pair manager optimizes performance, consistency and reliability by reducing untwist at plug
• Patented tangle-free latch prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds and changes
• Slender strain relief boot provides easy access in high-density applications
Download PDF Spec Sheet
