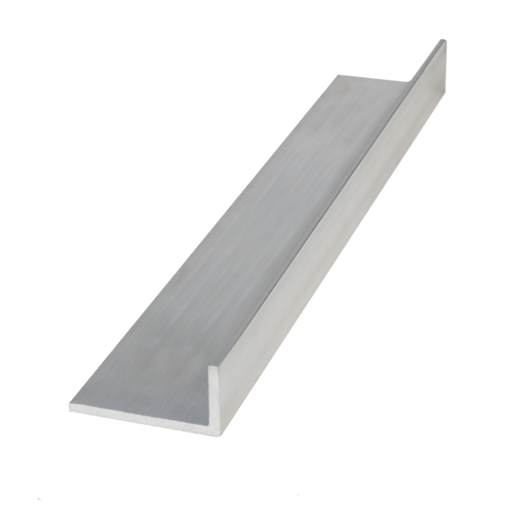

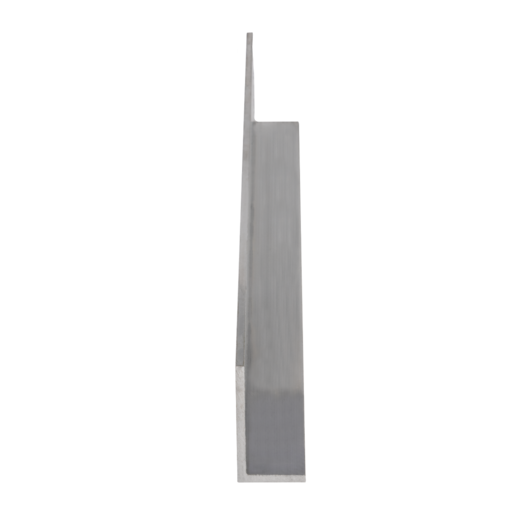

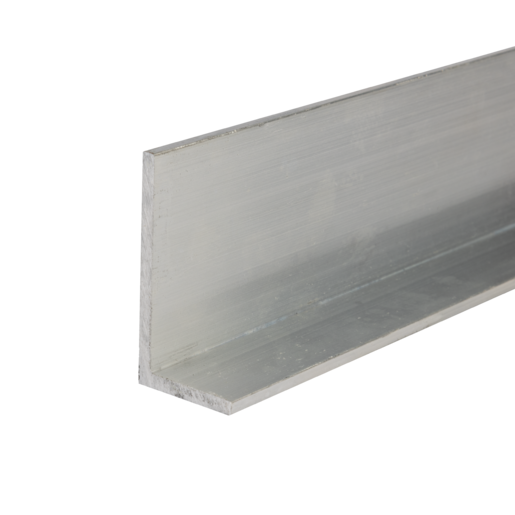

5/8" x 5/8" x 1/8" Equal Leg Aluminum Angle Bar 6063-T52
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Legs | 0.625" x 0.625" |
| Alloy | 6063 |
| Metal Type | Aluminum |
| REACH | Yes |
| Thickness | 0.125 |
| Temper | T52 |
| Shape | Angle |
| Max Length | 192 |
| RoHS | Yes |
Mechanical Properties
| Density g/cm^3 | 3 |
| Elongation % in 2 in. | 12 |
| Brinell Hardness 500 kg load | 60 |
| Ultimate Tensile Strength KSI | 27 |
| Rockwell Hardness B Scale | 17 |
| Shear Strength KSI | 15 |
| Yield Tensile Strength KSI | 21 |
| Melting Point °F | 1140 - 1210 |
Chemistry Information : 6063 Aluminum
| Element | Percentage |
| Mg | 0.45 - 0.9 |
| Cu | 0.1 max |
| Si | 0.2 - 0.6 |
| Al | 98.9 |
| Fe | 0.35 max |
| Ti | 0.1 max |
| Cr | 0.1 max |
| Mn | 0.1 max |
| Zn | 0.1 max |
Aluminum Angle 6063-T52 offers excellent corrosion resistance, lightweight properties, and good formability. Compared to 6061 aluminum, 6063 is easier to form and provides superior corrosion resistance, although it has approximately half the strength. 6063-T52 is commonly used in applications where corrosion resistance and appearance are more important than high strength, such as piping, furniture, architectural structures, and decorative applications.
Features :
• Black Anodized Finish : Enhances surface durability, improves wear resistance, and provides an attractive decorative appearance.
• Excellent Corrosion Resistance : Suitable for indoor and outdoor applications with minimal maintenance requirements.
• Lightweight Design : Offers easy handling, installation, and fabrication while maintaining structural performance.
• Smooth Aesthetic Surface : Provides a clean, professional appearance ideal for architectural and decorative projects.
• Good Formability : Easy to cut, drill, machine, and fabricate for custom applications.
• Non-Toxic Surface Finish : Safe for applications requiring a clean and environmentally friendly material.
• Long Service Life : Anodized coating helps protect the aluminum from oxidation and extends product durability.
