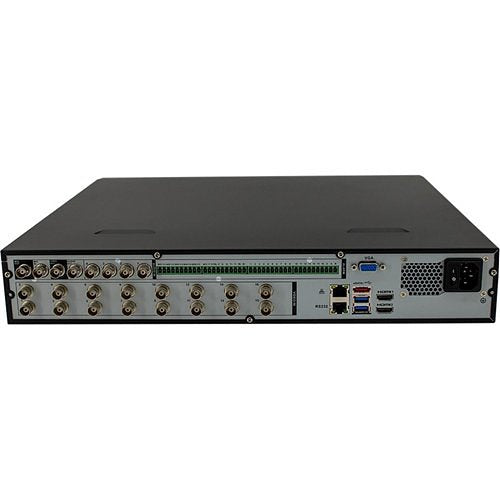

4K 16-Channel Pentabrid HDCVI DVR with Analytics Dahua Tech X84R3L10
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Operating System | Embedded LINUX |
| Main Processor | Embedded Processor |
| Performance |
• Human and Vehicle object classification • Decreased false alarms from leaves, lights, animals • Configure function on 6 channels • 10 Tripwire/Intrusion rules per channel |
| Analog Camera Input |
16 Channels, BNC |
| HDCVI |
8 MP, 6 MP, 5 MP, 4 MP, 1080p at 30 fps, 720p at 60 fps |
| AHD |
8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p at 30 fps |
| TVI |
8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p at 30 fps |
| IP Camera Input |
IP Camera Input |
| Audio |
Input: Four (4) Channels, BNC Output: One (1) Channel, BNC |
| Two-way Talk |
Input: One (1) Microphone, BNC Output: One (1) Channel, BNC |
| Record Rate Main Stream |
8 MP at 15 fps 6 MP or 5 MP at 25 fps, 4 K-N, 4 MP, 1080p, 720p, 960H, D1, or CIF at 30 fps |
| Record Rate Sub Stream |
960H at 15 fps; D1 or CIF at 30 fps |
| Maximum Incoming Bandwidth |
128 Mbps |
4K 16-Channel Pentabrid HDCVI DVR with Analytics Dahua Tech X84R3L10
DESCRIPTION :
The X84R Series HDCVI DVR offers 4K recording on each HDCVI channel and a host of advanced features and functions. The X84R takes advantage of HDCVI technology for easy integration into existing video surveillance systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously, plus the DVR delivers 4K resolution on each HDCVI or IP channel.
FEATURES :
⦿ 4K at 15 fps Recording Resolution on All HDCVI Channels
⦿ Dual-stream Video Recording
⦿ Smart H.265+ and Smart H.264+ Dual Codecs
⦿ Auto-detection and Auto-configuration of Video Inputs
⦿ 32 IP Camera Channels, each channel up to 12 MP
⦿ Maximum 128 Mbps Incoming Bandwidth
⦿ Analytics+ Functions: Perimeter Protection and Smart Motion Detection
⦿ Spot Output (HDMI 2 Output)
⦿ Five-year Warranty
Download PDF Spec Sheet
