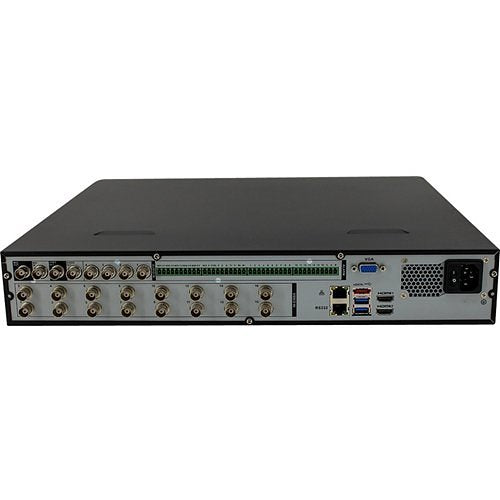

4K 16-Channel Pentabrid HDCVI DVR with Analytics 1.5U, 4TB HDD Dahua Tech X84R3L4
Where are we? 4 Continents 9 Countries

Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Operating System | Embedded LINUX |
| Main Processor | Embedded Processor |
| Object Classification | • Human or Vehicle • Secondary Recognition for Tripwire and Intrusion |
| Analog Camera Input | 16 Channels, BNC |
| AHD | 8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p at 30 fps |
| HDCVI | 8 MP, 6 MP, 5 MP, 4 MP, 1080p at 30 fps, 720p at 60 fps |
| TVI | 8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p at 30 fps |
| CVBS | NTSC |
| IP Camera Input | 16+16 Channels, each channel up to 12 MP |
| Multi-screen Display | IP extension mode not enabled: 1/4/8/9/16 IP extension mode enabled: 1/4/8/9/16/25/36 |
| Bit Rate | 32 Kbps to 8192 Kbps per Channel |
| Internal HDD | Four (4) SATA Ports, up to 10 TB capacity for each disk |
| USB | One (1) USB 2.0 Port and Two (2) USB 3.0 Ports |
| Power Supply | 100 VAC to 240 VAC, 50/60 Hz |
| Part No | X84R3L4 |
4K 16-Channel Pentabrid HDCVI DVR with Analytics 1.5U, 4TB HDD Dahua Tech X84R3L4
DESCRIPTION :
The X84R Series HDCVI DVR offers 4K recording on each HDCVI channel and a host of advanced features and functions. The X84R takes advantage of HDCVI technology for easy integration into existing video surveillance systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously, plus the DVR delivers 4K resolution on each HDCVI or IP channel.
FEATURES :
⦿ 4K at 15 fps Recording Resolution on All HDCVI Channels
⦿ Dual-stream Video Recording
⦿ Smart H.265+ and Smart H.264+ Dual Codecs
⦿ Auto-detection and Auto-configuration of Video Inputs
⦿ 32 IP Camera Channels, each channel up to 12 MP
⦿ Maximum 128 Mbps Incoming Bandwidth
⦿ Analytics+ Functions: Perimeter Protection and Smart Motion Detection
⦿ Spot Output (HDMI 2 Output)
⦿ Five-year Warranty
Download PDF Spec Sheet
