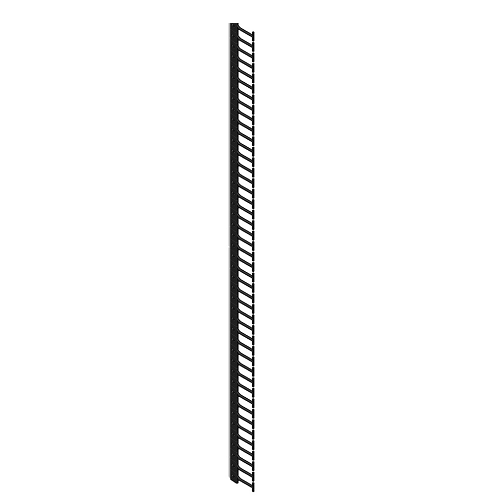

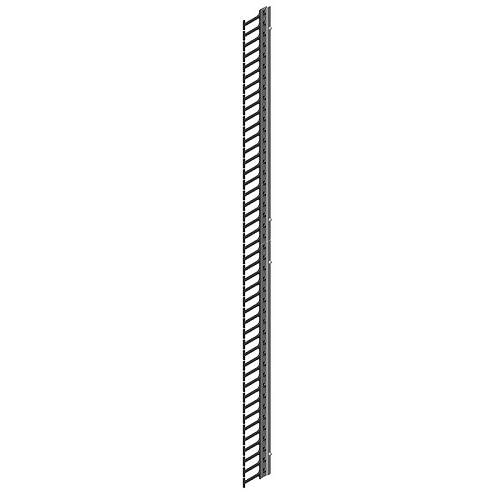

48U Vertical Cable Manager for Zeta Frame Cabinet 39835-E06

Product Information

Specification

Description:

• Fully compatible with Air Dam Kit and Cable Lashing Panel

• Openings between fingers align with each U on the mounting rail

• Short or long plastic T-shaped finger options

• Rail setback: - 7-1/4 (184 mm) for Managers with long fingers - 4-3/4 (121 mm) for Managers with short fingers

• Long fingers pass up to (48) cables per U space through openings

• Short fingers pass up to (24) cables per U space through openings

• Hinged cover included with managers in cabinets wider than 600 mm

• Material: aluminum panels, fingers are black, hinges/latches are blue

• Finish: Black or Glacier White; fingers are black, hinges/latches are blue

• Select part number to match cabinet usable height, width and color of the cabinet
