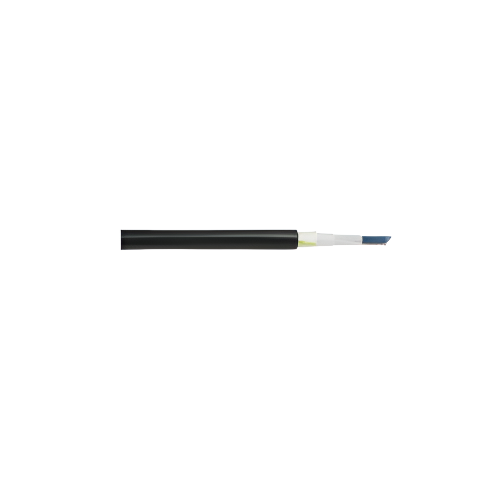

48 Fiber 0.48" Dia RWP Singlemode DriLite Ribbon Cable Series R1D Black R10483D01

Where are we? 4 Continents 9 Countries


Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
Dri-Lite Ribbon Cable is a totally gel-free cable. The cable is designed for Outside Plant (OSP) application, specifically lashed aerial and underground duct applications. Our industry leading optical ribbons are manufactured with high dimensional precision and low planarity, which equates to low losses during mass fusion splicing.Longitudinal strength elements are applied over the core tube and encased within a black jacket. A rip cord is included under the jacket for easy access to the core tube.
Also Known as :
48 Dri-Lite Ribbon Cable, Reduced Water Peak (RWP) Cable, 48 Fiber Count, 48 Fiber Cable, Gel free 48 Fiber Cable, Single Mode Dri-Lite Cable.
Specifications :
Fiber Count | 48 |
Nominal Diameter | 0.48 " / 12.2 mm |
Fiber Type | Single Mode - RWP |
Maximum Tensile Loading | Install : 600 lbs Long Term : 200 lbs |
Minimum Bend Radius | Install : 9.6 inch Long Term : 4.8 inch |
Reduced Water Peak | Yes |
Operation/Storage | -40°C to +70°C |
Instalaltion | -30°C to +70°C |
Part Number | R10483D01 |
Applications :
• Lashed aerial
• Underground duct
• Broadband network
Benefits :
• Reduces preparation time and labor cost
• High fiber density
• Multiple network applications
• Easier handling and reduced loss
• Industry approved
• Excellent mass splicing results
Features :
• Gel-free water-blocking technology
• Available with up to 864-fiber
• Multiple fiber types available
• Highly flexible tube
• Meets or exceeds Telcordia and RDUP specifications
• Industry leading planarity
