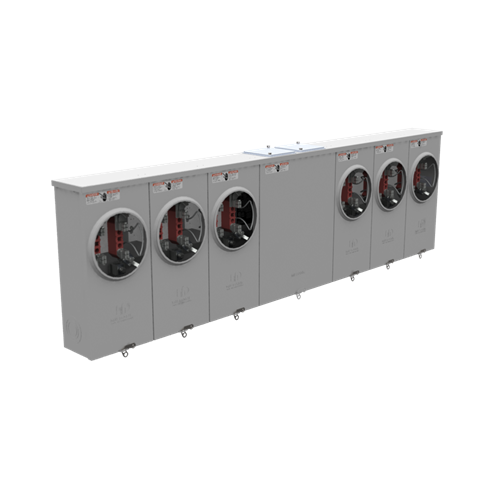

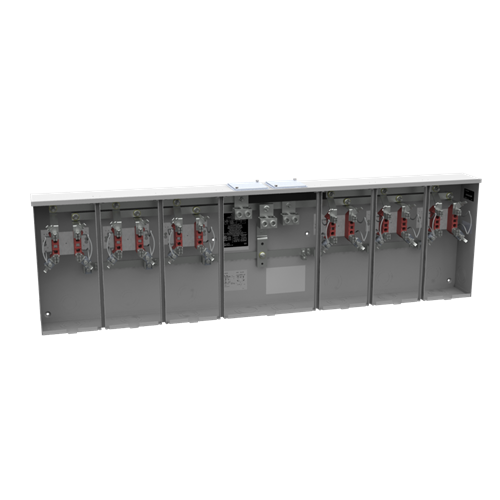

4 Terminal 6-Position 200A Meter Socket with Large Closing Plate Horn Bypass U1256-X-QG-KK-K4
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
The Meter Socket securely houses and connects the utility meter for power consumption measurement in residential and commercial systems. It supports various voltage and amperage configurations and is built for durability, weather resistance, and tamper protection. Suitable for both overhead and underground connections, this versatile socket simplifies installation and maintenance while ensuring reliable, long-term performance.
Also Known As :
Meter Socket, Socket, Multi Gang Socket, 200 Amp Meter Socket, 200 Amp Socket, Electric Sockets
Specification :
| Type | Ringless Meter Socket |
| Amperage Rating | 200 Continuous Ampere |
| Application | Meter Socket |
| Bypass Provision | Horn Bypass |
| Cable Entry | Overhead or Underground |
| Main Breaker Size | No Main Breaker |
| Material | G90 Galvanized Steel with Powder Coat Finish |
| Equipment Ground | Quadplex Ground |
| Frequency Rating | 60 Hertz |
| Hub/Closing Plate | Large Closing Plate |
| Insulation | No Insulation |
| Number of Jaws | 4 Terminal |
| Knockouts | True |
| Load Side Wire Range | 6 AWG - 350 kcmil |
| Mounting | Surface Mount |
| Number of Main Breakers | 0 |
| Number of Meter Positions | 6 Positions |
| Number Of Receptacles | 0 |
| Phase | 1 Phase |
| Size | 5.125L x 62.875W x 18H |
| Terminal | Double Mechanical |
| Standard | UL Listed;Type 3R |
| Terminal | 3/8 Inch Stud |
| Height | 18.0 IN |
| Length | 5.125 IN |
| Width | 62.875 IN |
Features :
• Designed for easy installation and replacement, featuring accessible mounting points and clear labeling.
• Built to withstand adverse weather conditions, making it suitable for both indoor and outdoor installations.
• Equipped with tamper-resistant enclosures and locks to deter unauthorized access and enhance safety.
• Built to withstand adverse weather conditions, making it suitable for both indoor and outdoor installations.
