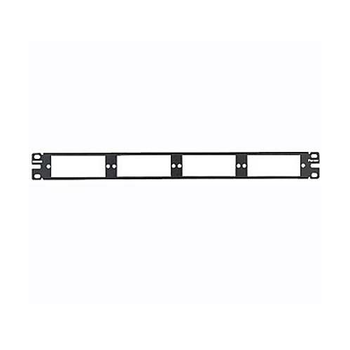

4 Port Opticom Fiber Adapter Patch Panel Flat DIN Rail 2RU CFAPPBL2

Product Information

Specification

Also Known As:

This fiber patch panel is designed to occupy 1 rack unit of space in a standard 19-inch equipment rack. The 1 RU height allows for efficient use of rack space in data centers and network installations.

About:

A fiber patch panel is a device used in data centers, telecommunications facilities, and other environments to manage and organize fiber optic cables. It provides a central location for terminating and interconnecting individual fiber optic cables.

Specification:

Common Applications:

• High Speed Data Transmission
• Telecommunications
• High-quality Audio and Video Signals
• Data Communication
• Data Centers
• Industrial Environments

Features:

• Works with all Panduit Opticom Fiber Optic Cassettes and Fiber Adapter Panels - Provides versatility and flexibility with a fully modular solution for a variety of pre-terminated installations, FAP and field termination, and splicing installations. Works with all Panduit LC, SC, ST and fiber adapter panels and cassettes

• Provides higher patch field density in fewer rack units saving valuable space - Modular design mounts up to four Opticom Cassettes or FAP’s per RU and up to three Opticom Cassettes per RU for the angled fiber optic trays

• Angled design - Allows cable to flow to each side of the rack: patch cords can be routed directly into vertical cable managers

• Fiber optic splice module - Can fusion splice up to 96 fibers per RU in a single enclosure with one-toone splice-to-patching ratio

• Side and rear cable entry - Provides installer with several options to route cable within the tray

• Patch panel mounting - Hardware provided to allow patch panel to be pre-assembled before mounting to rack

Standards:

• Fiber Optic Connector Standards: The product likely complies with industry standards for fiber optic connectors, such as LC, SC, ST, or MTP/MPO, depending on the model. These standards ensure compatibility with various fiber optic cables and equipment.

• DIN Rail Mounting: The DIN rail mounting feature allows the patch panel to be securely attached to a DIN rail, which is a common standard for mounting electrical and networking equipment in industrial environments.

Construction:

• Housing Material: The patch panel's housing is usually constructed from sturdy and durable materials, such as metal or robust plastic. These materials provide protection for the internal components and maintain the panel's structural integrity.

• Adapter Panels: Fiber optic adapter panels are typically included or integrated into the patch panel. These panels hold the fiber optic adapters (e.g., LC, SC, ST) that facilitate the connection of incoming and outgoing fiber optic cables.
