4 Pair 22 AWG UTP CMR-LSHF 1G 4PPoE PowerWise Cable Unshielded Blue PW52-H46-2M 1000 ft BrakeBox
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification

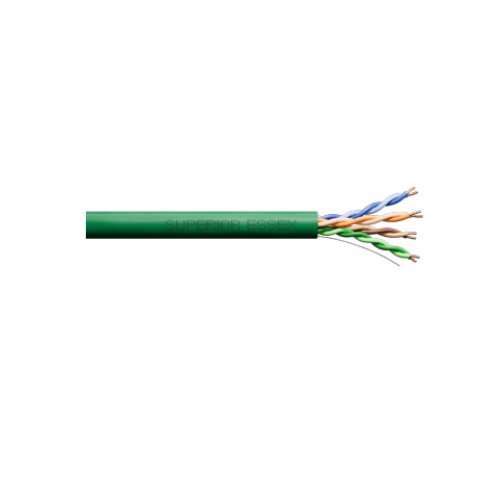

Note: Image is an illustration purpose only, may not reflect the exact color sold.
About :
PowerWise 1G 4PPoE CMR-LSHF AWG 22 with heat dissipation element cables provide the best performance and overall value for 4 Pair Power over Ethernet (4PPoE) applications requiring up to 100W of power and up to 2.5GBASE-T Ethernet performance. PowerWise 1G 4PPoE CMR-LSHF cables are specifically designed to mitigate temperature build-up offer exceptional energy efficiency and ensure
performance (up to 2.5GBASE-T Ethernet) over the lifetime of your system. Cable temperature increases are reduced and power efficiency is increased as a result of 22 gauge conductors and the heat dissipation element.
Also Known as :
Riser Cable, Low Smoke Halogen Free (LSHF) Telephone Cable 4 Pair Count, 22 AWG Cable, 4 Pair 22 AWG, Untwisted Pair Cable, Riser Low Power Cable, Powerwise 4 Pair Cable, Power over Ethernet Cable, Unshielded Cable.
Performance Compliance:
• UL listed CMR-LP (0.5)
• UL 444
• CSA C22.2 No. 214-08
• UL 1666
• IEC 60134
• IEC 60332-1
• IEC 60754
• IEC 62821-1
• IEC 62821-2
• IEC 62821-3
• ANSI/TIA-568.2-D
• Article 800, NEC (NFPA 70)
• RoHS-compliant/RoHS 2-compliant
• HDBaseT Class A and B
Applications:
• 10BASE-T through 2.5GBASE-T Ethernet
• Power over Ethernet (PoE) - IEEE 802.3bt Type 1 to 4
• ATM and token ring
• HDBaseT Class A and B
Benefits:
• Performance assurance for exceptional overall channel performance
• Assures ample bandwidth Headroom
• Ideal for any A/V applications up to100m channel
• AWG 22 insulated wire offers 88% power efficiency and lowest temperature increase
inside a bundle, the best of its class
• Easily identifiable conductor mates even in low-light environments
Ideal for any A/V applications up to 100m channel
Mitigate the heat to same level along the whole distance of the link for improved bandwidth performances
Features:
• Guaranteed 0.3 dB headroom for IL, ACR and PSACR
• Tested 350 MHz
• Color coded box labels
• HDBaseT Class A and B certified
• Heat dissipation element
• UL LP listed
• Temperature cable rating: 75°C for CMR
• Ideal for extended distance over 100m

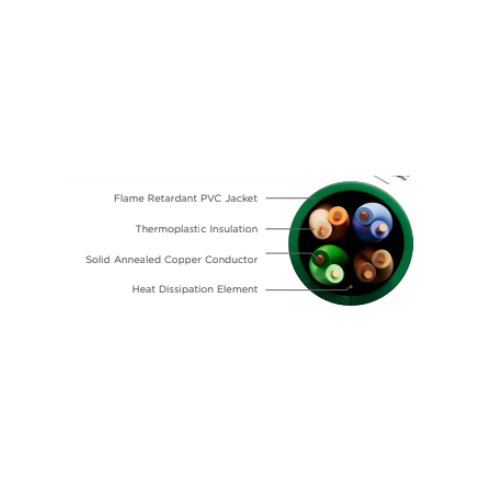

Specifications:
| Pair Count | 4 |
| Conductor Size | 22 AWG |
| Conductor | Solid annealed copper |
| Nominal Diameter | 0.27 inch (6.9 mm) |
| Insulation | Solid HPDE |
| Insulation Colors | Pair 1: ColorTip Light Blue, Blue Pair 2: ColorTip Light Orange, Orange Pair 3: ColorTip Light Green, Green Pair 4: ColorTip Light Brown, Brown |
| Heat Dissipation Element | Coated copper |
| Jacket |
Flame retardant LSHF |
| Characteristic Impedance Ohms | 100 ± 15 |
| Nominal Velocity of Propagation % | 70 |
| Flame Rating | Riser |
| Jacket Color | Blue |
| Weight lbs/kft | 36 |
| Package | 1,000 ft BrakeBox |
| Part Number | PW52-H46-2M |
