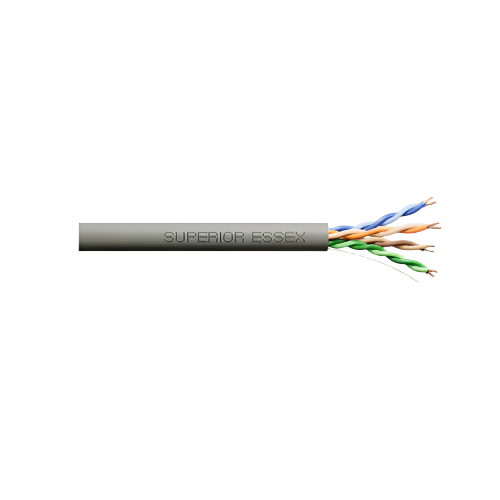

Note: Image is an illustration purpose only, may not reflect the exact color sold.

About :

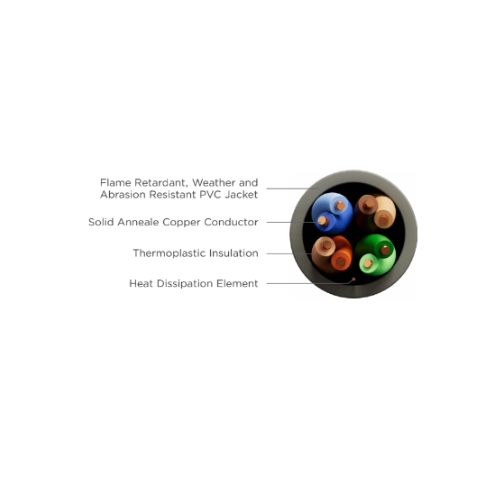

PowerWise 1G 4PPoE Indoor/Outdoor AWG 22 with heat dissipation element cables provide the best performance and overall value for 4 Pair Power over Ethernet (4PPoE) applications requiring up to 100W of power and up to 2.5GBASE-T Ethernet performance. PowerWise 1G 4PPoE Indoor/Outdoor cable is specifically designed for outdoor applications. UV-blocking compounds aid in protecting the cable from light. CMX Outdoor cables are designed to extend the run between the Network Interface Unit and the point of entry into the interior of a residence or a premise. This cable has been tested and listed as UL 444 Outdoor compliant. This designation requires the cable to resist 300 hours of UV and heat. In addition, the CMR listing allows the cable to be used in riser spaces per UL 1666, eliminating the need to transition to fire resistant cables.

Also Known as :

Riser Cable, Telephone Cable 4 Pair Count, 22 AWG Cable, 4 Pair 22 AWG, Untwisted Pair Cable, Unarmored Cable, Powerwise 4 Pair Cable, Power over Ethernet Cable, Indoor/Outdoor Cable, Outdoor Data Cable, Unshielded Cable.

Performance Compliance:

• UL 444
• CSA C22.2 No. 214-08
• UL 1581
• UL 1666
• ANSI/TIA-568.2-D
• ANSI/ICEA S-90-661-2012
• ANSI/TIA/EIA-570-B
• Article 800, NEC (NFPA 70)
• RoHS-compliant/RoHS 2-compliant
• HDBaseT Class A and B

Applications:

• 10BASE-T through 2.5GBASE-T Ethernet
• Power over Ethernet (PoE) - IEEE 802.3bt Type 1 to 4
• ATM and token ring
• Wi-Fi – IEEE 802.11a/b/g/n
• HDBaseT Class A and B

Benefits:

• Contributes toward 1 LEED credit under the Material and Resources credit (MRc)
• Assures ample bandwidth Headroom
• Ideal for any A/V applications up to100m channel
• AWG 22 insulated wire offers 88% power efficiency and lowest temperature increase
inside a bundle, the best of its class
• Easily identifiable conductor mates even in low-light environments

Features:

• UL Certified Environmental Product Declaration (EPD)
• Guaranteed 0.3 dB headroom for IL, ACR and PSACR
• Tested 350 MHz
• Color coded box labels
• HDBaseT Class A and B certified
• Tough, weather resistant PVC jacket
• BrakeBox payout control system
• Ideal for extended distance over 100m
