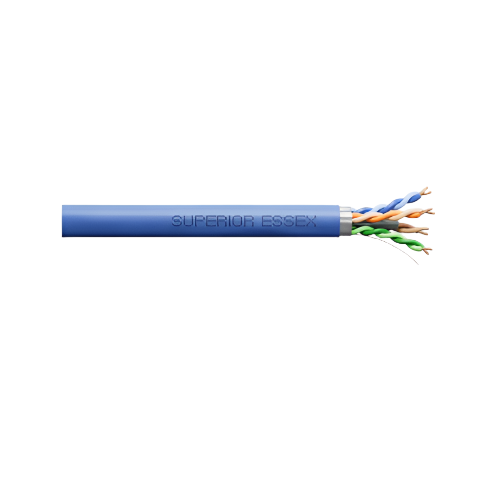

4 Pair 22 AWG UTP CMP-LP 10G 4PPoE PowerWise Cable Unshielded Blue PW6H-H72-2B 1000 ft Reel
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
PowerWise 10G 4PPoE cables provide the best performance and overall value for 4 Pair Power over Ethernet (4PPoE) applications requiring up to 100W of power and up to 10 Gigabit Ethernet performance. PowerWise 10G 4PPoE cables are specifically designed to mitigate temperature build up, offer exceptional energy efficiency and ensure performance (up to 10 Gigabit Ethernet) over the lifetime of your system. PowerWise 10G 4PPoE cable provides the performance benefits of a typical shielded CAT6A cable while utilizing a proprietary isolation wrap which fully complies with UL444 requirements for an unshielded twisted pair (UTP) product and which assures 7dB margin over Alien
Crosstalk (AXT) performance requirements in ANSI/TIA-568.2-D.
Also Known as :
Plenum Cable, Low Power (LP) Telephone Cable 4 Pair Count, 22 AWG Cable, 10G 4 Pair 22 AWG, Untwisted Pair Cable, Plenum Low Power Cable, Powerwise 4 Pair Cable, Power over Ethernet Cable, Unshielded Cable.
Performance Compliance:
• UL 444
• CSA C22.2 No. 214-08
• NFPA 262
• ANSI/TIA-568.2-D
• ANSI/ICEA S-90-661-2012
• Article 800, NEC (NFPA 70)
• RoHS-compliant/RoHS 2-compliant
Applications:
• 10BASE-T through 2.5GBASE-T Ethernet
• Power over Ethernet (PoE) - IEEE 802.3bt Type 1 to 4
• ATM and token ring
• Backward compatible to legacy protocols and applications
• HDBaseT Class A and B
Benefits:
• Contributes toward 1 LEED credit under the Material and Resources credit (MRc)
• 7 dB AXT performance without grounding or bonding
• Assures ample bandwidth Headroom
• Ideal for any A/V applications up to100m channel
• AWG 22 insulated wire offers 88% power efficiency and lowest temperature increase
inside a bundle, the best of its class
• Mitigate the heat to same level along the whole distance of the link for improved bandwidth performances
Features:
• Health Product Declaration (HPD)

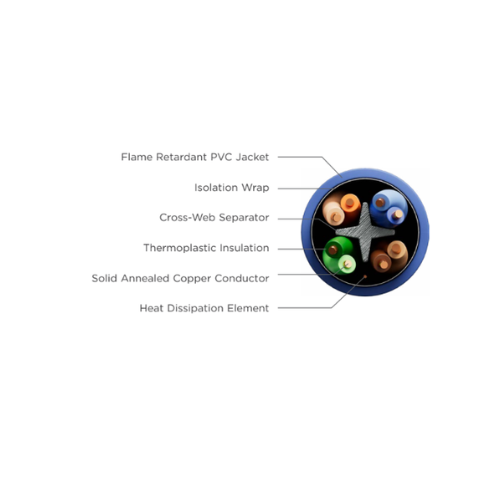

• Proprietary Isolation Wrap
• Tested 650 MHz
• Color coded box labels
• Temperature cable rating: 90°C for CMP/CMR
• UL LP listed
• Heat dissipation element
• Ideal for extended distance over 100m
Specifications:
| Pair Count | 4 |
| Conductor Size | 22 AWG |
| Conductor | Solid annealed copper |
| Nominal Diameter | 0.30 inch (7.6 mm) |
| Insulation | FEP |
| Insulation Colors | Pair 1: ColorTip Light Blue, Blue Pair 2: ColorTip Light Orange, Orange Pair 3: ColorTip Light Green, Green Pair 4: ColorTip Light Brown, Brown |
| Heat Dissipation Element | Coated copper |
| Jacket |
Flame retardant (FR), low smoke PVC |
| Characteristic Impedance Ohms | 100 ± 15 |
| Nominal Velocity of Propagation % | 67 |
| Flame Rating | Plenum |
| Jacket Color | Blue |
| Weight lbs/kft | 48 |
| Package | 1,000 ft Reel |
| Part Number | PW6H-H72-2B |
Download PDF Spec Sheet
