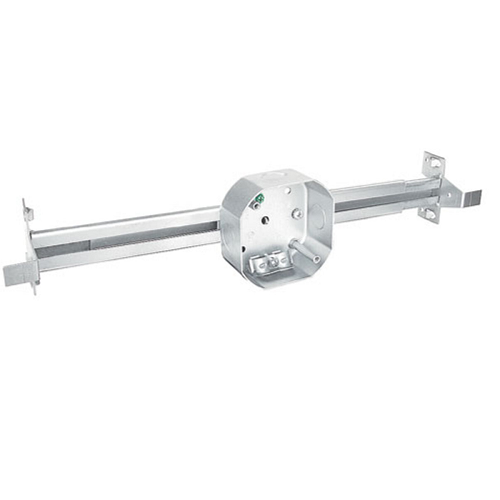

4 Inch Octagon Bar Hanger Ceiling Fan Box 1-1/2 Inch Deep 54151-FANBH (Pack of 25)

Product Information

Specification

About:

• The box is octagonal, meaning it has eight sides, and it measures 4 inches across.
• The box has a depth of 1-1/2 inches, providing ample space for wiring connections and devices.

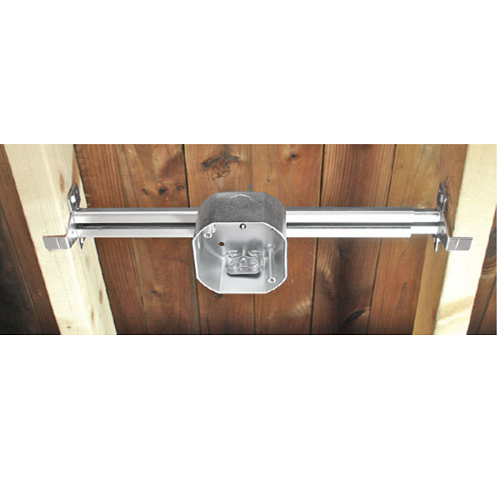

• The inclusion of a bar hanger indicates that the box is designed to be suspended from ceiling joists or structural members using metal bars.
• Bar hangers provide a secure and stable mounting method for ceiling fan boxes, ensuring the safety and stability of the installed fan.

Also Known As:

Octagon Bar Hanger Ceiling Fan Box, Bar Hanger Ceiling Fan Box, Ceiling Fan Support Box, Octagonal Ceiling Fan Mounting Box, Bar Hanger Ceiling Fan Fixture Box, Ceiling Fan Support Enclosure With Bar Hanger.

Specification:.

• Type: Octagon Bar Hanger Ceiling Fan Box
• Material: Galvanized Steel
• Product Height: 2.48 Inch
• Product Width: 4.0 Inch
• Side Knockouts: (3) 1/2", (4) Pryouts
• Color: Silver
• UPC: 785592400932

Features:

• Mounting hardware included
• Ceiling Fan Max Load 16" Joists: 70 lbs
• Ceiling Fan Max Load 24" Joists: 70 lbs
• Fixture Max Load 16" Joists: 210 lbs
• Fixture Max Load 24" Joists: 90 lbs
• Brackets: Bar Hanger
