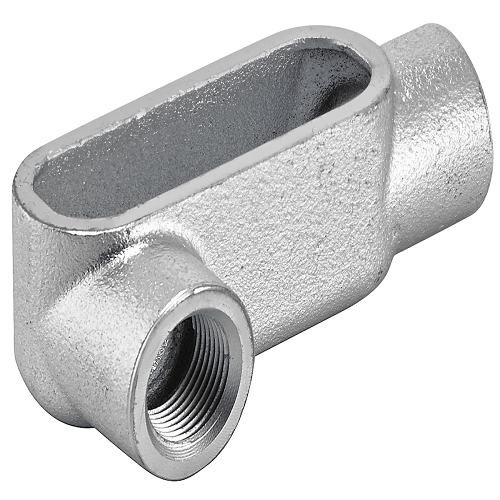

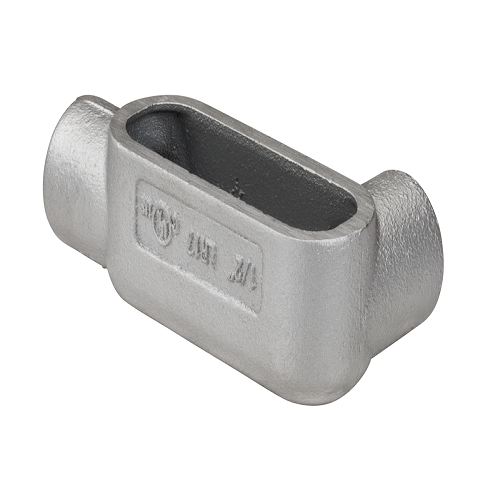

4" Form 7 Gray Iron LR Type Conduit Bodies LR10G7

Product Information

Specification

About :

These adaptors are commonly made of durable materials like PVC, metal, or galvanized steel, depending on the application and the level of durability required. As the name suggests, it has a 4-inch diameter, suitable for connecting with other 4-inch pipes or conduits.  Depending on the design, it can be threaded or non-threaded. Threaded types ensure a more secure connection, especially in systems that undergo vibration or movement. In electrical installations, it's used to connect rigid metal conduits to boxes, enclosures, or other conduits. In plumbing, it's used for connecting pipes in water supply lines or drainage systems. They are usually manufactured in accordance with specific industry standards (like UL, ANSI, or ASTM) to ensure safety and compatibility.

Also known as:

4-Inch Rigid Adapter, 4-Inch Rigid Joint, 4" Rigid Threaded Coupling, 4-Inch Rigid Connector.

Specification:

Material : Malleable Iron
Height : 7 Inch
Width : 5.4 inch
UPC : 751338869547

Features:

• Threaded LR type with cover and gasket
• NPT tapered hubs
• NEMA FB 1/NEMA 3R raintight when installed with cover and gasket
• Suitable for Class 1 Div. 2 hazardous locations when installed according to NEC 2014 501.10(B)(4)
