4-Channel 4K PoE NVR with Smart H.265 4TB HDD N41C1P4
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Main Processor | Industrial-grade Embedded Processor |
| Operating System | Embedded Linux |
| Interface | One (1) HDMI One (1) VGA |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Audio Compression | PCM, G.711A, G.711Mu, G.726 |
| Supported IP Camera Resolution | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1 |
| Maximum Recording Bandwidth | 80 Mbps |
| Ethernet | One (1) RJ-45 Port (10/100 Mbps), Self-adaptive |
| PoE | Four (4) Ports (IEEE802.3af/at) |
| Maximum User Access | 128 |
| Mobile Operating System | IOS, Android |
| Internal HDD | One (1) SATA III Port, Up to 10 TB capacity per HDD |
| Power Supply | 48 VDC, 1.25 A |
| Operating Conditions | –10° C to +50° C (+14° F to +122° F), 10% to 93% RH |
| Storage Conditions | 0° C to +40° C (32° F to 104° F), 30% to 85% RH |
| Dimensions (W x L x H) | 204.60 mm x 206.40 mm x 45.60 mm (8.06 in. x 8.12 in. x 1.80 in.) |
| Part No | N41C1P4 |

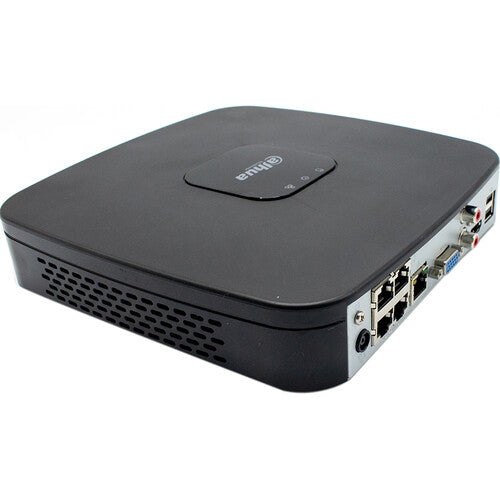

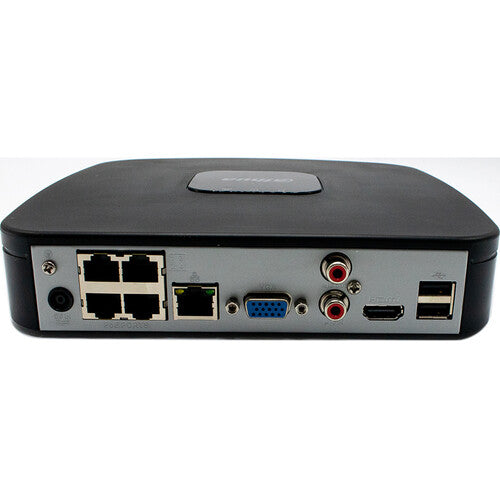

4-Channel 4K PoE NVR with Smart H.265 4TB HDD N41C1P4
DESCRIPTION :
4-channel Smart 1U 4 PoE 4K, 4 TB HDD Network Video Recorder.
FEATURES :
⦿ Smart H.265+ and Smart H.264+ Dual Codec
⦿ Maximum 80 Mbps Incoming Bandwidth
⦿ Up to 8 MP Resolution for Preview and Playback
⦿ Simultaneous HDMI and VGA Video Output
⦿ Supports Remote Configuration and Management of Network Cameras
⦿ Supports P2P Remote Surveillance and DMSS Mobile App
⦿ Records Analytics+ Data from Edge Cameras
⦿ Four (4) PoE/PoE+ Ports
Download PDF Spec Sheet
