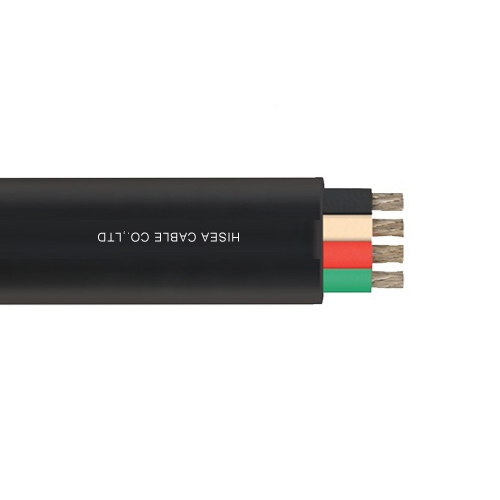

4 AWG 4C Type W Flat Portable Power Cable 2KV

4 AWG 4C Type W Flat Portable Power Cable 2KV

Allowable ampacity for 4 AWG 4C Type W Flat Portable Power Cable 2KV: 123 amps 20°C Ambient

Allowable ampacity for 4 AWG 4C Type W Flat Portable Power Cable 2KV: 104 amps 40°C Ambient

Application:

• Designed for use in mobile mining equipment and as portable power and temporary power supply.

Also Known As:

4 AWG 4C Type W Flat Portable Power Cable, 4 AWG 4C Type W Flat Cable, Type W Flat Power Cable, Power Cable, 4 AWG 4C Portable Power Cable, 4 AWG 4C Type W Flat Cable

Features:

• Passes MSHA flame test (P-XXX-MSHA)
• Excellent resistance to oil, solvent, ozone, aging and abrasion
• Excellent flexibility
• Sunlight resistant
• Flame retardant
• Free stripping insulation

Construction:

Conductors:

Tinned, annealed copper per ASTM B-33 Flexible, rope-lay

Separator:

A paper tape is applied between the conductor and insulation to facilitate stripping.

Insulation:

Color coded 90°C ozone, oil (60°C) and water resistant (90°C) synthetic rubber (EPDM) ICEA S-75-381

Assembly:

Conductors are assembled flat. An open reinforcement is applied over each conductor.

Jacket:
Extra heavy duty, oil-resistant thermoset jacket (black) per ICEA S-75-381 for oil and sunlight resistance.

Specifications:

• Size: 4 AWG
• Stranding: 259
• Insulation Thickness (Mils): 60
• Nominal Diameter (In): .75 x 1.89
• Ampacity 20°C Ambient: 123
• Ampacity 40°C Ambient: 104
• Ship Weight lbs./Mft.: 1240
