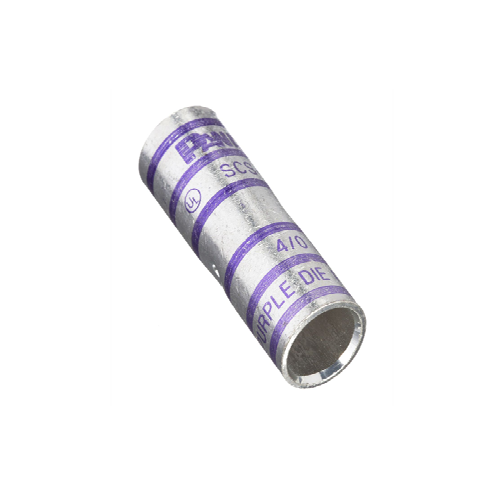

4/0 AWG Purple Pan-Lug Standard Copper Compression Butt Splice SCS4/0-X (Pack Of 10)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Compression Splice |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size | 4/0 AWG |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Purple |
| Burndy Die Index Number | 15 |
| Panduit Die Index Number | P54 |
| T & B Die Index Number | 54 |
| Overall Length (In.) | 2.12 |
| Overall Length (mm) | 53.8 |
| Wire Strip Length (In.) | 1 |
| Wire Strip Length (mm) | 25.4 |
| UL Temperature Rating (°C) | 90 |
Description
The 4/0 AWG Compression Splice Tin-Plated Copper Standard Purple SCS4/0-X is an indispensable component for robust electrical connections, meticulously engineered to deliver unparalleled performance and durability. Crafted from premium-grade tin-plated copper, this splice ensures superior conductivity and exceptional corrosion resistance, making it an ideal choice for a diverse array of electrical applications.
Features
• Color-coded barrel, internal wire stops, tin plated to inhibit corrosion, NEBS Level 3
• Color-coded barrels marked with Panduit and a specified competitor die index numbers for proper crimp die selection.
• Internal wire stops to prevent over-insertion of conductor.
• Tin-plated to inhibit corrosion.
• UL Listed and CSA Certified to 35 KV and temperature rated to 90°C when crimped with crimping tools and dies.
• UL Listed and CSA Certified for wide wire range-taking capability when crimped with Uni-Die Dieless Crimping Tools.
