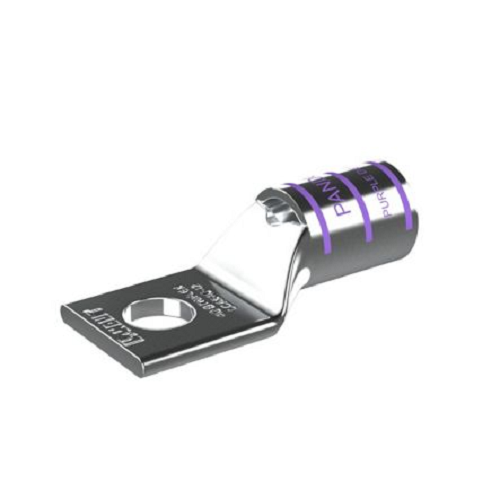

4/0 AWG Copper Compression Connectors Lug Purple LCAX4/0-12-X (Pack of 10)

Product Information

Specification

About:

• 4/0 AWG Copper Compression Connectors Lugs are high-capacity electrical connectors designed to terminate and connect 4/0 AWG copper conductors. These lugs are essential for ensuring reliable and efficient electrical connections in heavy-duty applications.
• Constructed from high-purity copper, which provides excellent electrical conductivity and thermal performance. Often tin-plated to enhance corrosion resistance and prevent oxidation, thereby extending the lifespan of the connectors in harsh environments.
• The connectors use a compression mechanism where the barrel is crimped around the conductor using a crimping tool. This ensures a strong, reliable connection that can withstand high electrical loads and mechanical stress.
• Provides a secure and stable connection that ensures consistent electrical performance. High resistance to corrosion and mechanical stress, suitable for long-term use in demanding environments.

Also Known As:

4/0 AWG Copper Lugs, 4/0 AWG Copper Crimp Lugs, 4/0 AWG Copper Terminal Lugs, 4/0 AWG Copper Compression Terminals, 4/0 AWG Copper Cable Lugs, 4/0 AWG Copper Crimp Terminals, 4/0 AWG Copper Electrical Lugs, 4/0 AWG Copper Connector Lugs, 4/0 AWG Copper Lug Connectors, 4/0 AWG Copper Conductor Terminals.

Specification:

Features:

• Color-coded bands for proper die selection and crimp placement.
• Generously beveled wire entry prevents bent back strands when inserting conductor into barrel.
• Tin-plated to inhibit corrosion.
• An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion.
• Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive.
• Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V.
