Product Information
Specification
| Type | Triple Fan Panel |
| Material | Rack Mount Panel: CRS (Cold Rolled Steel) |
| Height | 5.22" |
| Width | 19" |
| Depth | 1.94" |
| Dimensions | 21" L x 6" W x 6" H |
| Color/Finish | Rack Mount Panel: Black Powder Coated Finish |
| UPC | 879447001020 |
| Part Number | 1908-3-001-02 |

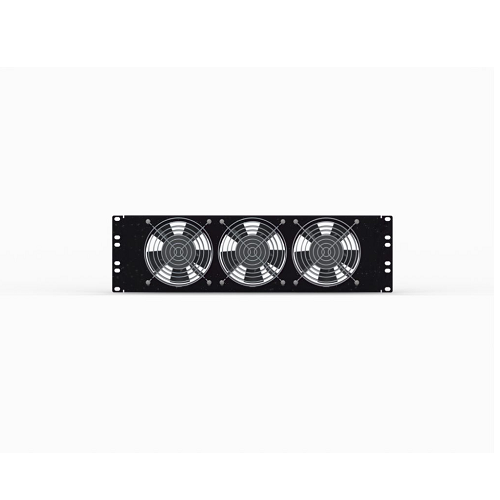

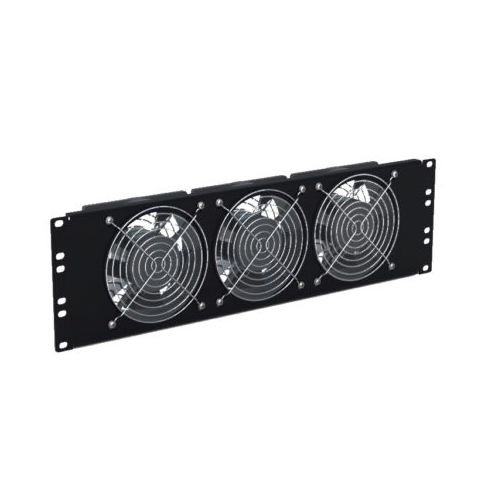

3U Triple Fan Panel 1908-3-001-02
Description
The Kendall Howard Triple Fan Panel combines three 115 CFM fans, which together move 345 cubic feet of air per minute. By installing the Triple Fan Panel into your network configuration, you can ensure that the heat produced by your device will be properly and efficiently dissipated, resulting in a cooler environment within your cabinet.
Pre-Assembled
The three 115 CFM high speed fans are pre-installed into a 3U heavy gauge steel panel to provide an out-of-the-box solution. The vented steel panel allows air to move through it with ease while also providing a protective barrier over the face of the fan.
Specially Designed Power Cord
The Triple Fan Panel includes a 3-tail power cord. This power cable supplies power to all three fans with only using one outlet of your rack mountable UPS or power strip.
Features
• Includes three 115V/115 CFM Fans
• Includes a 3-tail power cord
• Impedance protected
• 19" EIA compliant
Download PDF Spec Sheet
