38" X 62" Holes, ProtoBoard-6H-3U, 6-Hole Strips, Accepts DIN Connectors PR3U

Product Information

Specification

Also Known As :

6-hole ProtoBoard pattern, Glass-epoxy circuit board, Lead free and RoHS compatible.

About :

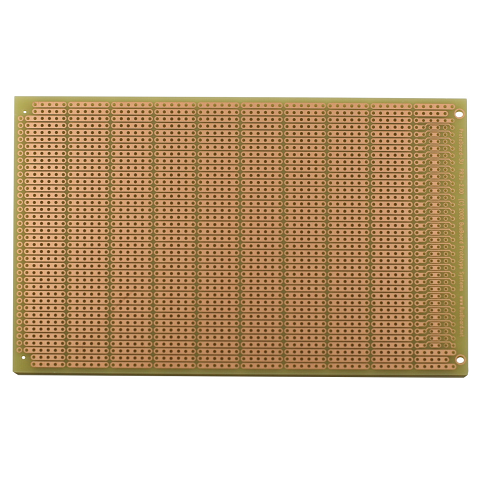

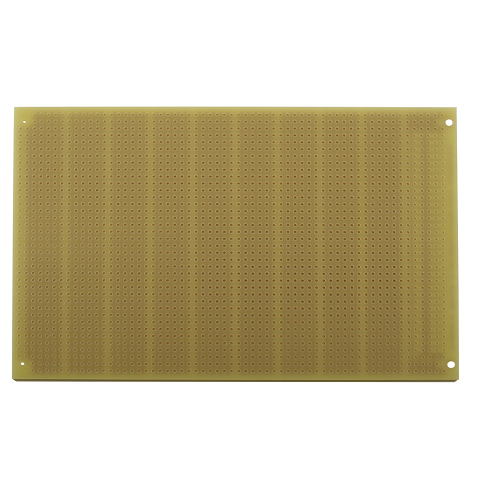

The ProtoBoard-6H-3U prototyping circuit board has a stripboard pattern that is pre-cut with 6 holes per segment. The 6-hole ProtoBoard pattern is good for integrated circuit use an it allows multiple components to be connected to each circuit junction. It is good for analog and digital use. It is a single-sided board with holes on 0.1” centers. The PR3U PCB accepts a 96 pin DIN-41612 VME connector for backplane or board-to-board applications. Holes for ejector latches are provided.

Common Applications: :

 In electronics, "hole strips" can refer to rows or columns of holes on a prototyping board (such as a breadboard or perfboard) that are used for inserting and connecting electronic components and wires. These hole strips are designed to facilitate the construction and testing of electronic circuits without the need for soldering.Hole strips can also be found on metalworking workbenches or tables. These strips contain a series of holes that can be used for securing workpieces in place with clamps, vises, or other fixtures.

Standards:

 ProtoBoards typically consist of a grid of holes or pads arranged in rows and columns. These holes are used for inserting and connecting electronic components and wires.

Construction :

Attachment Points: Mounting holes provide secure attachment points for fasteners like screws, bolts, nuts, washers, or rivets.
Alignment: Mounting holes are often used for aligning and positioning objects or components accurately.
Strength and Stability: Mounting holes can enhance the strength and stability of structures or assemblies.
Modularity: In modular design and construction, mounting holes allow components or modules to be easily attached or detached, facilitating the assembly, maintenance, or replacement of parts.
Heat Dissipation: In electronic and mechanical systems, mounting holes can be strategically placed to help dissipate heat. Heat sinks or other cooling components can be attached through these holes to maintain optimal operating temperatures.
Customization: Designers and engineers can incorporate mounting holes into their products to accommodate specific installation requirements or to make their designs compatible with existing hardware.



Part Number	PR3U
Size	3.9" wide, 6.3" long
Holes	(2.54mm) centers. Four 0.125”
Thick	1/16" thick (100 x 160 x 1.6mm).

Features :

• Convenient 6-hole ProtoBoard pattern provides an easy way to connect parts to IC’s.
• Single-sided high-quality FR4 glass-epoxy circuit board.
• 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
• 38 x 62 holes, 0.037" holes are drilled on 0.1" (2.54mm) centers.
• Standard single height (3U) Eurocard/VME size: 3.9" wide, 6.3" long, 1/16" thick (100 x 160 x 1.6mm).
• ProtoBoard saves time! ProtoBoard has a general purpose stripboard circuit pattern
that is pre-cut with 6 holes per segment.
• 0.1" hole spacing for DIP integrated circuits and headers.
• Standard single height (3U) Eurocard/VME size. Many off the shelf enclosures and card
cages are available.
• Accepts a 96 pin DIN-41612 VME connector for backplane or board-to-board connections. Holes for ejector latches. Rows 1 and 3 are routed to separate pads. Row 2 is unconnected.
• ProtoBoard-3U uses a high-quality FR4 glass epoxy board. It has better stability and
moisture resistance than boards using phenolic or SRBP (synthetic resin bonded paper) to avoid warping.

Specifications:

• Etched FR4 glass-epoxy circuit board.
• 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
• Holes are drilled on 0.1" (2.54mm) centers.
• 0.037" (0.94mm) holes sized for ICs or square post headers.
• 38 x 62 holes
• Size 3U = 3.9" wide, 6.3" long, 1/16" thick
(100 x 160 x 1.6mm).
