336 x 256 Outdoor Uncooled 7.5HZ Thermal IP Security Camera MVXT2I0SAZ00B

Product Information

Specification

336 x 256 Outdoor Uncooled 7.5HZ Thermal IP Security Camera MVXT2I0SAZ00B

Also Known As:

Thermal Camera, Radiometry Functions, Outdoor Camera, Uncooled Camera, 7.5HZ Camera, 35mm Lens Camera

About:

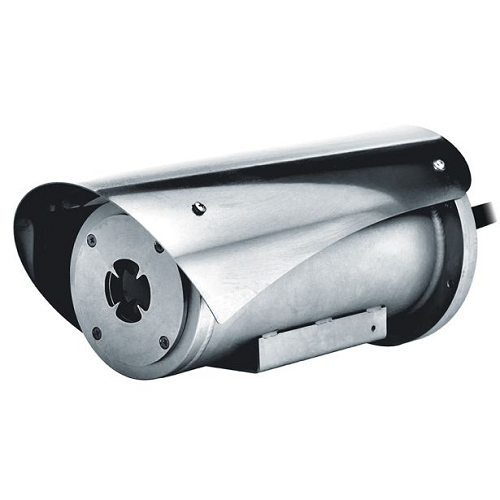

MVXT thermal camera with radiometric functions, in AISI 316L, 12-24Vdc/24Vac, IP version H264/AVC, 35mm, 336x256, 7.5Hz, armoured cable 4m, sunshield, -60°C/+65°C.  The MAXIMUS MVXT explosion-proof camera is a high-performance solution designed for efficient video surveillance and process control in hazardous environments prone to explosive atmospheres caused by flammable gases or dust. It is particularly suitable for the Oil & Gas, marine, and industrial sectors. The camera features a compact and functional design made entirely of AISI 316L stainless steel, providing excellent corrosion resistance enhanced through advanced polishing techniques. It is certified to operate within a temperature range of -60°C to +65°C and includes a sophisticated cold start system for reliable functionality in extreme conditions. With IP66 and IP68 ratings, the camera ensures complete protection against harsh weather and can be submerged up to 5 meters for 2 hours. The IP69 rating further allows for high-pressure water jet cleaning. The MAXIMUS MVX series is Lloyd’s Register Type Approval System Test Specification Number 1 certified, making it ideal for marine and offshore applications in environmental categories ENV1, ENV2, ENV3, and ENV5. Integrated IP-based radiometric functions enable temperature detection through the central 4 pixels of the image, with advanced radiometric versions available for precise temperature measurement in defined areas. The thermal camera features enable alarm triggering and immediate preventive actions, ensuring enhanced safety and security in monitored zones. One of the key advantages of the MAXIMUS MVXT is its easy and secure "plug and play" installation with multipolar wiring, simplifying deployment and eliminating the complexity of traditional electrical connections. Delivered ready for use, it offers a reliable and efficient solution for monitoring in hazardous environments.

Features:

• Radiometry functions
• Exceptional corrosion resistance
• MVXT 12-24VDC 24VAC 35MM QVGA 7.5HZ 4MAC
• 336 x 256 Outdoor Uncooled Thermal IP Security Camera, 35mm Lens
• Certifications for use in Zones 1 and 2, IIC T5 and T6 Group (Gas) and in Zones 21 and 22, IIIC T100°C and T85°C Group (Dust)

Specifications:

• Product Type: Thermal Camera
• Resolution: 336 x 256 (Thermal)
• Lens Size: 35mm
• Voltage: 12vDC, 24vDC, 24vAC
• Part Number: MVXT2I0SAZ00B
