Product Information
Specification
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Performance | • Human and Vehicle object classification • Decreased false alarms from leaves, lights, animals • Configure function on two (2) analog channels • 10 Tripwire/Intrusion rules per channel |
| Interface | Two (2) HDMI (3840 x 2160) Ports One (1) VGA (1920 x 1080) Port One (1) TV Port |
| Spot Output | HDMI 2 |
| Maximum Playback Decoding | 16 Channels of 5M-N at 10 fps 16 Channels of 4M-N at 15 fps 16 Channels of 1080N/720p at 30 fps Eight (8) Channels of 5M-N at 20 fps Eight (8) Channels of 4M-N at 30 fps Four (4) Channels of 5M-N at 30 fps One (1) Channel of 8 MP at 30fps |
| Multi-screen Display | 1/4/8/9/16/25/36 |
| Maximum User Access | 128 Users |
| Mobile Operating System | IOS, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Part No | X54B5L10 |

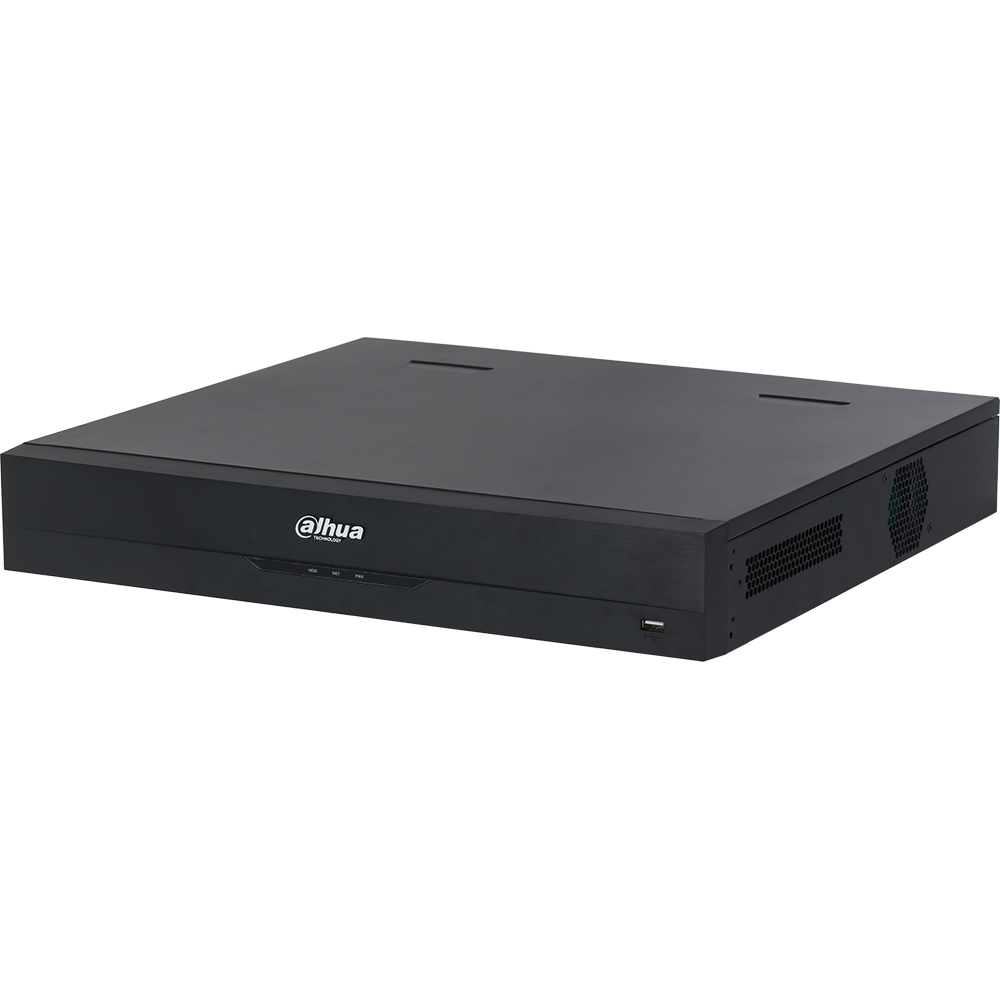

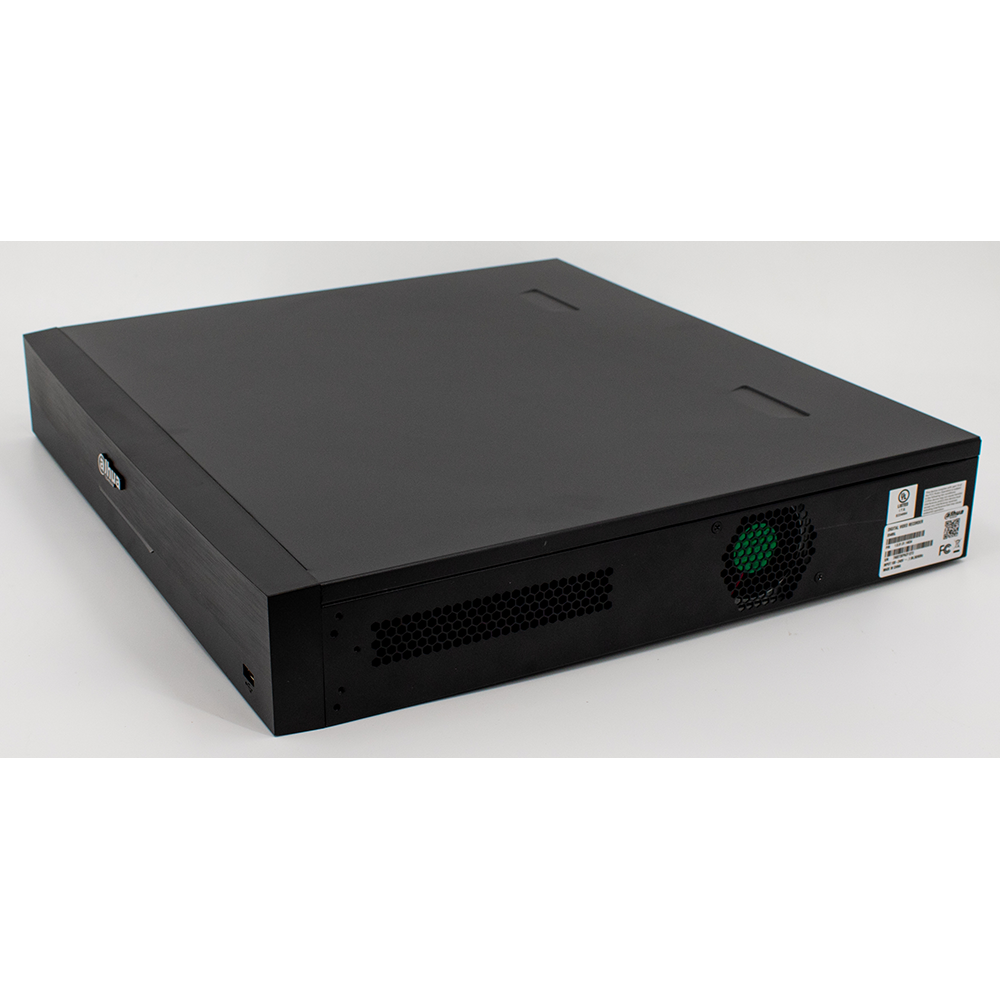

32CH 1080P HDCVI DVR 10TB Penta-brid X54B5L10
DESCRIPTION :
The X54B5L Series HDCVI DVR offers 5M-N/1080p recording on each HDCVI channel and a host of advanced features and functions. The DVR takes advantage of HDCVI technology for easy integration into existing video surveillance systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously. This recorder is the ideal solution for actively monitoring public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions.
FEATURES :
⦿ 1080p at 30 fps Recording Resolution on All HDCVI Channels
⦿ Available with a 4 TB, 6 TB, 8 TB, or 10 TB Pre-installed Hard Drive
⦿ Dual-stream Video Recording
⦿ AI Coding Technology for High-quality Human/Vehicle Video
⦿ Auto-detection and Auto-configuration of Video Inputs
⦿ 32 IP Camera Channels, each channel up to 8 MP
⦿ Maximum 128 Mbps Incoming Bandwidth
⦿ Spot Output
⦿ Perimeter Protection and Smart Motion Detection (SMD)
⦿ Long-distance Video Transmission
Download PDF Spec Sheet
