320x256 Dual Sensor Thermal PTZ Network Camera UED22FA000AH

Product Information

Specification

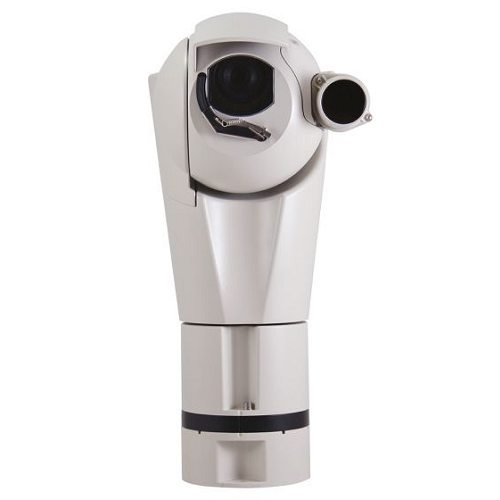

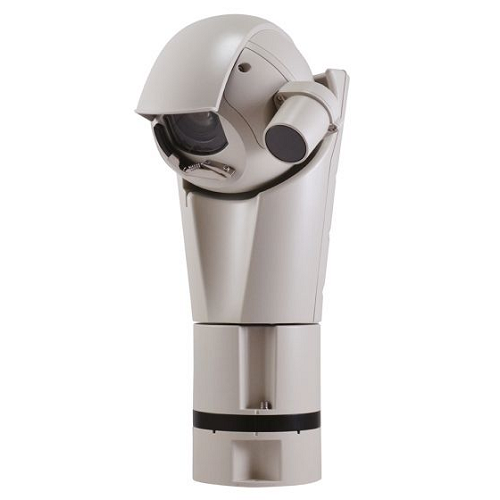

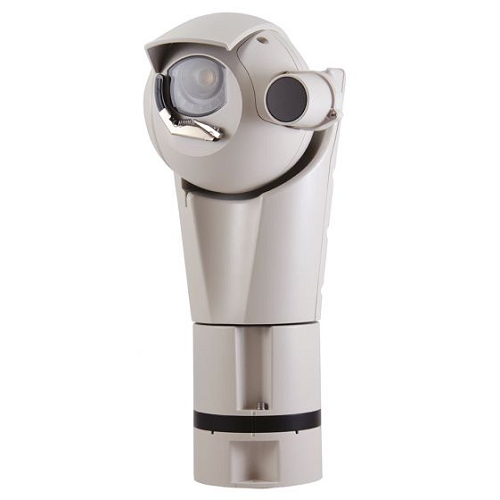

ULISSE EVO DUAL PTZ, Day/Night camera SONY FCB-EV7520, FullHD, zoom 30x, 1/2.8", H264/AVC, thermal camera 18mm (12° HFOV), 320x256, 30Hz, 24Vac/dc - PoE 90W, wiper. The EVO DUAL PTZ (UED) is a state-of-the-art network positioning system that offers dual video feeds from a high-sensitivity visual camera and a thermal camera, operating simultaneously. These cameras are perfectly synchronized with the system's pan-tilt-zoom (PTZ) movements, ensuring smooth and precise tracking. ULISSE EVO DUAL (UED) is the perfect solution for continuous outdoor surveillance, suitable for critical infrastructure, border security, perimeters, traffic monitoring, and railway safety, providing effective coverage day and night. The visual camera provides accurate recognition and identification, while the thermal camera ensures superior detection performance in total darkness or under challenging weather conditions. The thermal sensor, a non-cooled long-wave infrared (LWIR) equipped with vanadium oxide (VOx), is designed for maximum detection accuracy and is available in resolutions of 320x256 or 640x512, along with various lens options to meet specific application needs. The visible camera is equipped with SONY’s FCB-EV7520, featuring a 30x optical zoom and a 1/2.8" Exmor R CMOS sensor, capable of delivering Full HD 1080/60p resolution. This ensures high-quality imaging, even when tracking fast-moving objects or in difficult lighting environments. The system also includes advanced features like an image stabilizer, dynamic privacy masking, Wide Dynamic Range (WDR), and High Light Compensation, making it a powerful and versatile tool for high-demand surveillance applications.

Features:

• Easy to install
• Maximum detection accuracy
• PoE compatible with standard IEEE.802.3bt
• Designed to endure outdoor applications
• Unbeatable solution for video surveillance of perimeters and critical areas
• ULISSE EVO DUAL PTZ, Day/Night camera SONY FCB-EV7520, FullHD, zoom 30x, 1/2.8", H264/AVC, thermal camera 18mm (12° HFOV), 320x256, 30Hz, 24Vac/dc - PoE 90W, wiper

Specifications:

• Product Type: Network PTZ Camera
• Resolution: 320x256
• Part Number : UED22FA000AH
