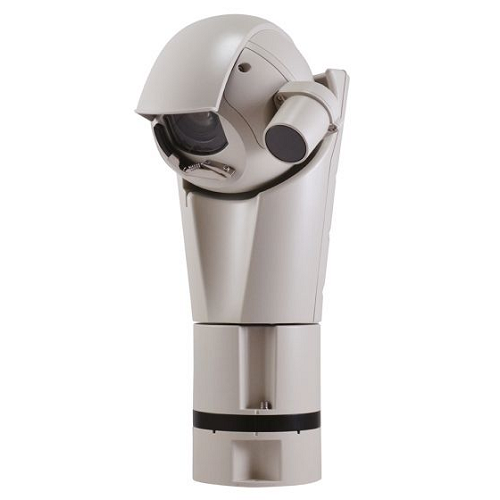

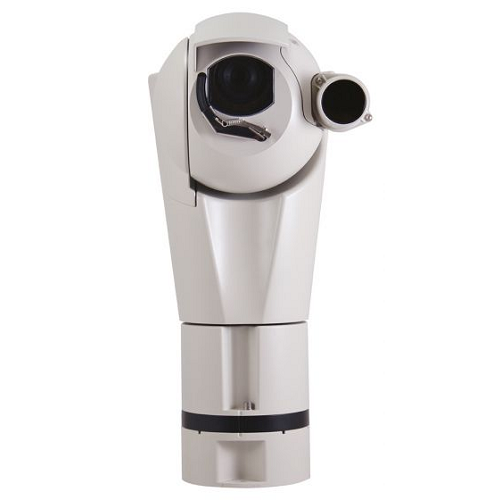

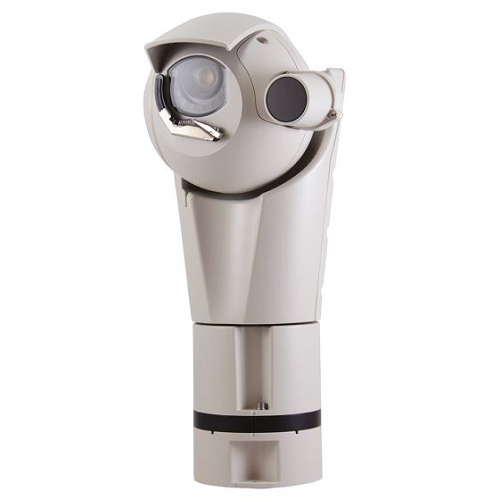

320x256 Dual Sensor Thermal PTZ Network Camera UED22CA000AH

Product Information

Specification

ULISSE EVO DUAL PTZ, Day/Night camera SONY FCB-EV7520, FullHD, zoom 30x, 1/2.8", H264/AVC, thermal camera 6.3mm (34° HFOV), 320x256, 30Hz, 24Vac/dc - PoE 90W, wiper. The EVO DUAL PTZ (UED) is an advanced network positioning system that delivers two simultaneous video streams from a high-sensitivity visual camera and a thermal camera, both perfectly synchronized with PTZ movements. Designed for effective day/night outdoor surveillance, the ULISSE EVO DUAL (UED) is ideal for monitoring perimeters, borders, critical infrastructure, traffic, railways, and more. This dual-camera system combines the visual camera's ability to recognize and identify targets with the thermal camera's superior detection accuracy, even in total darkness or extreme weather. The thermal camera features a non-cooled long-wave infrared (LWIR) sensor with vanadium oxide (VOx), offering maximum detection precision in challenging conditions. It is available in 320x256 or 640x512 resolution with various optical configurations to suit specific needs. The visual camera is a SONY FCB-EV7520 with 30x optical zoom and a 1/2.8" Exmor R CMOS sensor, providing Full HD 1080/60p resolution. This camera delivers outstanding image quality, even with fast-moving objects or difficult lighting. Additional features include an image stabilizer, dynamic privacy masking, and advanced SONY technology with Wide Dynamic Range (WDR) and High Light Compensation, ensuring optimal performance in high-contrast environments.

Features:

• Easy to install
• Maximum detection accuracy
• PoE compatible with standard IEEE.802.3bt
• Designed to endure outdoor applications
• Unbeatable solution for video surveillance of perimeters and critical areas
• ULISSE EVO DUAL PTZ, Day/Night camera SONY FCB-EV7520, FullHD, zoom 30x, 1/2.8", H264/AVC, thermal camera 6.3mm (34° HFOV), 320x256, 30Hz, 24Vac/dc - PoE 90W, wiper

Specifications:

• Product Type: Network PTZ Camera
• Resolution: 320x256
• Part Number : UED22CA000AH
