32-Channel 1.5U 1080p Pentabrid HDCVI DVR with 128Mbps X54B5L
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Performance | • Human and Vehicle object classification • Decreased false alarms from leaves, lights, animals • Configure function on two (2) analog channels • 10 Tripwire/Intrusion rules per channel |
| Interface | Two (2) HDMI (3840 x 2160) Ports One (1) VGA (1920 x 1080) Port One (1) TV Port |
| Spot Output | HDMI 2 |
| Maximum Playback Decoding | 16 Channels of 5M-N at 10 fps 16 Channels of 4M-N at 15 fps 16 Channels of 1080N/720p at 30 fps Eight (8) Channels of 5M-N at 20 fps Eight (8) Channels of 4M-N at 30 fps Four (4) Channels of 5M-N at 30 fps One (1) Channel of 8 MP at 30fps |
| Multi-screen Display | 1/4/8/9/16/25/36 |
| Maximum User Access | 128 Users |
| Mobile Operating System | IOS, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Part No | X54B5L |

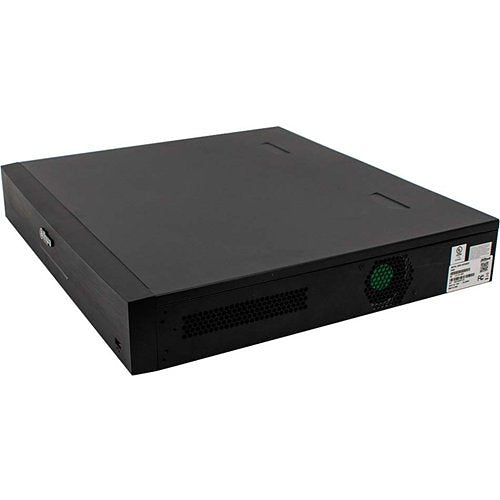

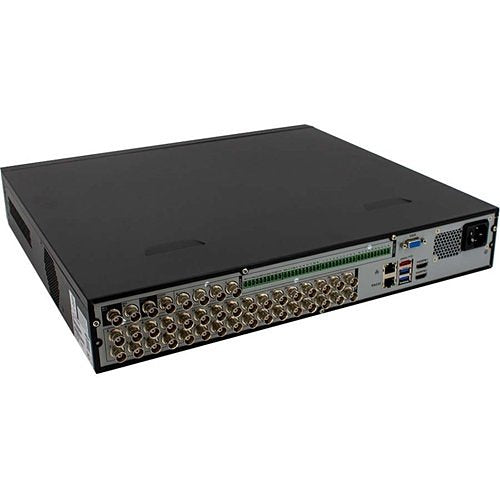

32-Channel 1.5U 1080p Pentabrid HDCVI DVR with 128Mbps X54B5L
DESCRIPTION :
WizSense Series devices combine Dahua's powerful Analytics+ with an intuitive and easy to use interface. WizSense devices offer Smart Motion Detection and Perimeter Protection functions that focus on human and vehicular images and ignore irrelevant images to capture important video while reducing false alarms. WizSense Series devices provide powerful general surveillance for small to medium size businesses at a sensible price.
FEATURES :
⦿ 1080p at 30 fps Recording Resolution on All HDCVI Channels
⦿ Available with a 4 TB, 6 TB, 8 TB, or 10 TB Pre-installed Hard Drive
⦿ Dual-stream Video Recording
⦿ AI Coding Technology for High-quality Human/Vehicle Video
⦿ Auto-detection and Auto-configuration of Video Inputs
⦿ 32 IP Camera Channels, each channel up to 8 MP
⦿ Maximum 128 Mbps Incoming Bandwidth
⦿ Spot Output
⦿ Perimeter Protection and Smart Motion Detection (SMD)
⦿ Long-distance Video Transmission
Download PDF Spec Sheet
