31" X 39" Holes,ProtoBoard-2H Size2, 2-Hole Strips, 4 Mounting Holes PR2H2

Product Information

Specification

Also Known As :

2-hole ProtoBoard pattern,Lead free and RoHS compatible,High-quality single-sided FR4 epoxy, Glass-epoxy circuit board, Anti-tarnish coating board.

About :

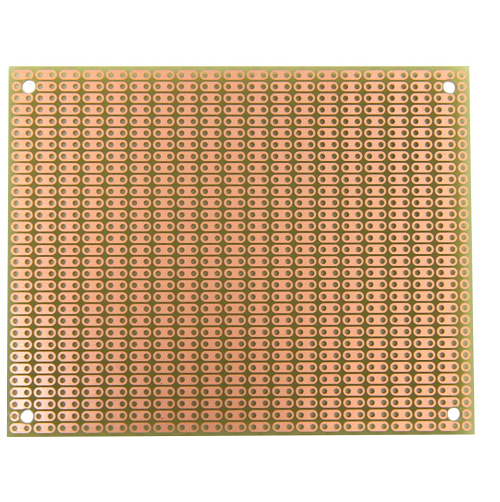

The ProtoBoard-2H-2 prototyping circuit board has 2-hole pre-cut strips. The convenient 2-hole ProtoBoard pattern provides an easy way to connect parts while maximizing usable board area. ProtoBoard-2H is a good pattern for compact circuit layouts, and it is often more convenient than pad-per-hole patterns. It is good for analog use as well as digital since many discrete components can be located closely. It is a single-sided board with holes in 0.1” centers. An anti-tarnish coating protects the copper for a long shelf-life and provides easy soldering.

Common Applications: :

 In electronics, "hole strips" can refer to rows or columns of holes on a prototyping board (such as a breadboard or perfboard) that are used for inserting and connecting electronic components and wires. These hole strips are designed to facilitate the construction and testing of electronic circuits without the need for soldering.
These hole strips are often used for tasks like doweling, where wooden dowels or pegs are inserted into the holes to create strong joints in furniture and cabinetry.

Standards:

ProtoBoards typically consist of a grid of holes or pads arranged in rows and columns. These holes are used for inserting and connecting electronic components and wires.

 Construction :

Attachment Points: Mounting holes provide secure attachment points for fasteners like screws, bolts, nuts, washers, or rivets.
Alignment: Mounting holes are often used for aligning and positioning objects or components accurately.
Strength and Stability: Mounting holes can enhance the strength and stability of structures or assemblies.
Modularity: In modular design and construction, mounting holes allow components or modules to be easily attached or detached, facilitating the assembly, maintenance, or replacement of parts.
Heat Dissipation: In electronic and mechanical systems, mounting holes can be strategically placed to help dissipate heat. Heat sinks or other cooling components can be attached through these holes to maintain optimal operating temperatures.

Part Number	PR2H2
Size 2	100 x 80mm (3.94 x 3.15in)
Holes	(2.54mm) centers. Four 0.125”
Thick	1/16" thick (1.6mm)

Features :

• Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts.
• High-quality single-sided FR4 glass-epoxy circuit board.
• 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead-free and RoHS compatible.
• 31 x 39 holes, 0.037" holes are drilled on 0.1" (2.54mm) centers. Four 0.125” mounting holes.
• Size2 = 100 x 80mm (3.94 x 3.15in), 1/16" thick (1.6mm)
• ProtoBoard saves time! ProtoBoard-2H has a general-purpose stripboard circuit pattern that is pre-cut with 2 holes per segment.
• 0.1" hole spacing for DIP integrated circuits and headers.
• BusBoard Size2 is ½ the size of a standard 3U size VME board.
• Four mounting holes provided.

Specifications:

• Etched FR4 glass-epoxy circuit board.
• Single-sided, 1oz/ft2 copper with an anti-tarnish coating for easy soldering.
• Lead-free and RoHS compatible.
• Holes are drilled on 0.1" (2.54mm) centers.
• 0.037" (0.94mm) holes sized for ICs or square post headers.
• 31 x 39 holes. Four 0.125” mounting holes.
• Size 2 = 100 x 80mm (3.94 x 3.15in), 1/16" thick (1.6mm)
