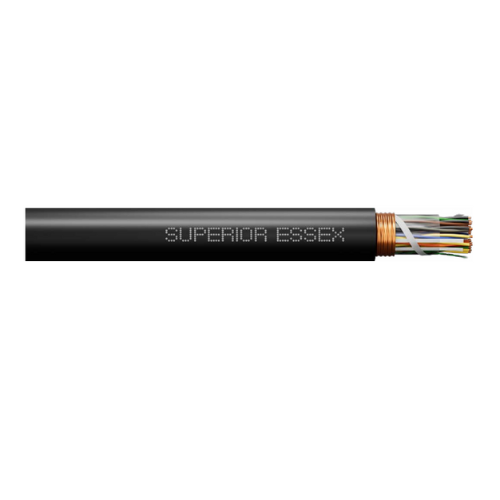

300 Pair 24 AWG CUPIC-F Solid Annealed Copper Outdoor Cable Black 04-110-04 2500 ft Reel

Product Information

Specification

About :

CUPIC-F Cables are designed for use in low risk duct or direct burial applications. It may be used aerially, but must be attached to a support strand.

Also Known as :

300 Pair Count, 300 Pair Cable, 24 AWG Solid Cable, 300 Pair Direct Burial Cable, Twisted Pair Cable.

Specifications :

≤ 25-Pair Core: Pairs are assembled into a cylindrical core
> 25-Pair Core: Cables larger than 25-pair are assembled into units, which are then used to assemble the core; units are identifiable using color-coded binders
Twisted Pairs: Individual insulated conductors; twisted into pairs with varying lay lengths; specific color combinations provide pair identification
Shield: Corrugated, 5 mil copper tape is applied longitudinally with an overlap; shield interfaces are flooded
Core Wrap: Non-hygroscopic, dielectric tape applied over the core
Insulation: Solid polyolefin; color coded in accordance with industry standards
Standards Compliance: ANSI/ICEA S-84-608-2011, RDUP 7 CFR 1755.390 (PE-39). RoHS-compliant

Applications :

• Low risk direct burial
• Underground conduit
• Lashed aerial

 Benefits :

• Minimizes crosstalk
• Provides thermal protection
• Moisture resistant
• Inhibits corrosion and water migration
• Provides a tough, protective covering designed to withstand exposure to direct sunlight.

Features :

• Twisted into pairs with varying lay lengths
• Core wrap
• Filled core
• Fully flooded shield interfaces
