300 Amp Springer Controls Manual Starter 20.0-25.0 Amp GMKO-M

Name: 300 Amp Springer Controls Manual Starter 20.0-25.0 Amp GMKO-M
Brand: Global Industrial
SKU: GMKO-M
Availability: InStock
Rating: 4.9 (8671 reviews)

Roll over image to Zoom

300 Amp Springer Controls Manual Starter 20.0-25.0 Amp GMKO-M

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: GMKO-M

Select a Variant

300 Amp Springer Controls Manual Starter 20.0-25.0 Amp GMKO-M

Price:

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

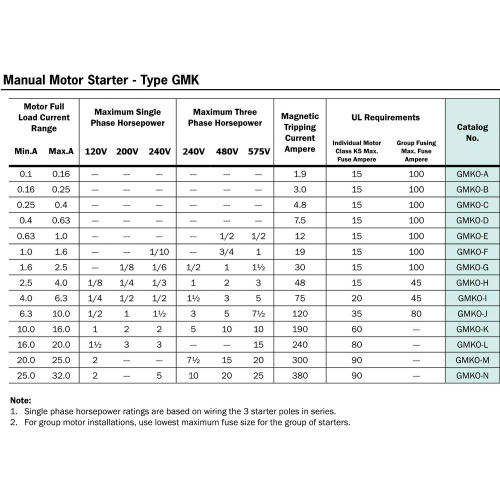

Specification

Magnetic Tripping Current	300 A
230V Full Load Amps	25
Horsepower Rating @ 1 Phase 115V	2 HP
Horsepower Rating @ 3 Phase 460V	?ÿ15?ÿHP
Color	Gray
Contact Type	1 N.O.
Horsepower Rating @ 3 Phase 230V	7-1/2 HP
Push Button Type	Integrated/Interlocked
Voltage	Up to 690 V
Full Load Amps @ 115V	25 FLA
Phase	Suitable for Single or Three Phase
Enclosure Material	Polycarbonate
Manufacturers Part Number	GMKO-M
FLA 460V	25
Brand	Springer Controls

300 Amp Springer Controls Manual Starter 20.0-25.0 Amp GMKO-M

Description:

These Springer Controls GMK motor protection switches are true manual motor starters. A model GMK motor protection switch is a three-pole horsepower-rated switch that combines motor thermal overload protection and magnetic short circuit protection in one compact unit. The GMK series is ideal for applications requiring multi-motor protection; these starters can be group fused. Any of these switches can be wired for single phase applications per the wiring diagram included in the box. All GMK manual motor starters are specifically engineered with a comprehensive list of motor protection features. These motor protection switches are available in a range from 0-32 amps. All poles are open for both thermal and magnetic trips. Easy operation with start and stop buttons maximize user control.
