30 PSI Manometer
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
• Ideal for measuring low differential pressure in clean rooms, test and balance, medical equipment, HVAC, pneumatic systems, and computer peripherals.
• All read gauge, and differential pressure in up to 11 units of measure and feature large, backlit displays, min/max, hold, and auto power off functions.
• The USB output port enables communication with a computer.
• High accuracy of ±0.3% FS @25ºC, repeatability: ±0.2% (max ±0.5%) FSO, and combined linearity and hysteresis: ±0.2 (Max ±1.0%) FSO.
• To connect this model to a computer to stream data, you will need the USB Cable 840054 Data Acquisition Software 840052.

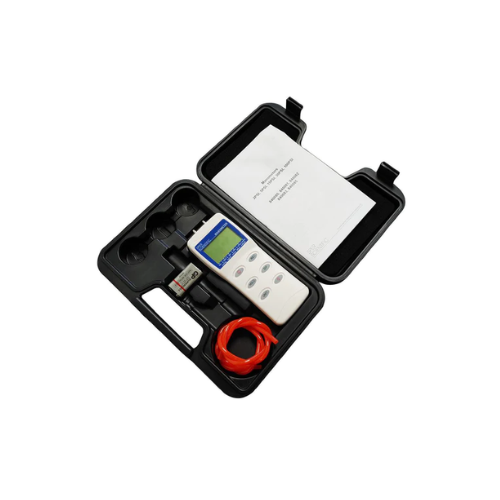

• All Sper Scientific Manometers come ready to use with connection hose, instructions, and a 9V battery, in a hard shell carrying case.
Also Known as:
Sper Scientific Manometer, Manometers, 30 PSI Manometer, Sper Scientific 840082.
Specification:
Range |
Resolution |
|
PSI |
30 |
0.01 |
In H²O |
830 |
0.1 |
kPa |
207 |
0.1 |
Ft H²O |
69.2 |
0.01 |
In Hg |
61.08 |
0.01 |
Cm H²0 (840085 is in mmH²O) |
2110 |
1 |
mbar |
2068 |
1 |
Bar |
2.07 |
0.001 |
mm of Hg |
1550 |
1 |
Oz Inch² |
480 |
0.1 |
Kg cm² |
2.10 |
0.001 |
Max pressure |
60 PSI |
|
Download PDF Spec Sheet
