30 AWG Wrap-Strip-Unwrap Tool WSU-30M
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type |
Wrap-Strip-Unwrap Tool |
| Wrap Type | Modified |
| Wire Gauge | 30 AWG |
| Maximum Insulation Diameter | 0.021" |
| Terminal Hole Diameter | 0.036" |
| Terminal Hole Depth | 1.50" |
| Outside Diameter | 0.125" |
| Wrap Post Size | 0.025" |
| Length | 4" |
| Part Number | WSU-30M |

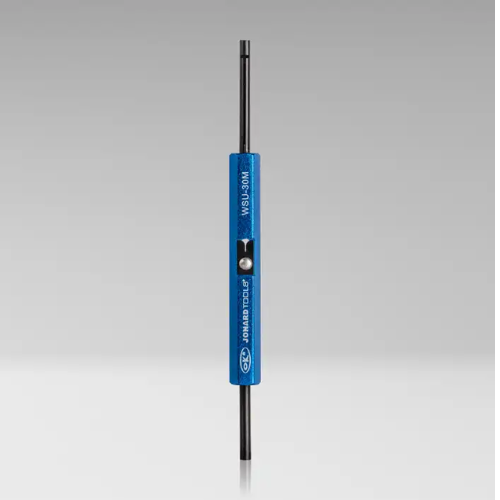

30 AWG Wrap-Strip-Unwrap Tool
Description:

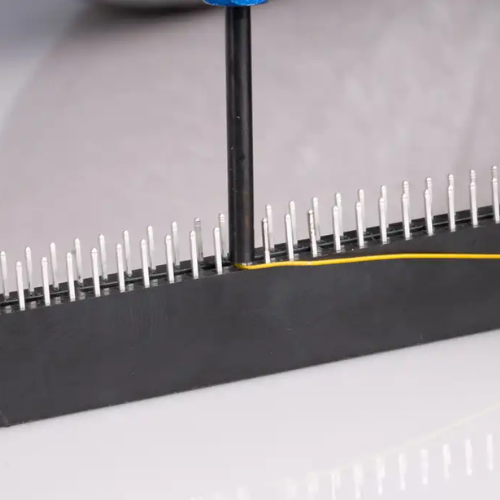

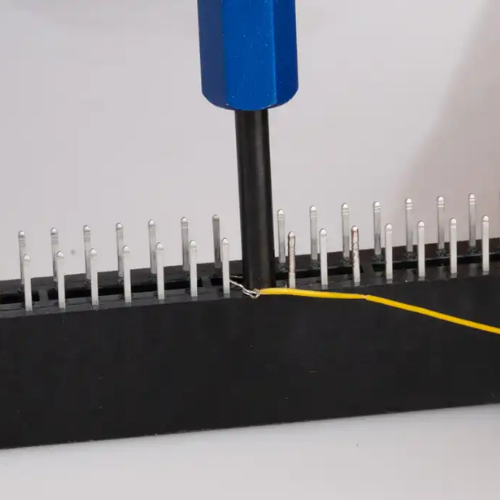

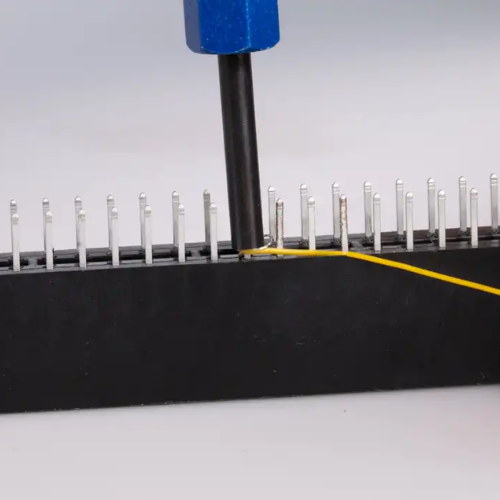

This tool is ideal for fast wire service and repair tasks, designed to wrap, strip, and/or unwrap 30 AWG (0.25 mm) wire.
Features:

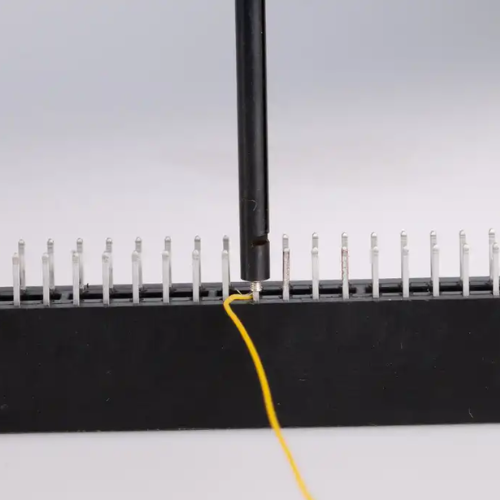

⦿ Compatible with 0.025" (0.63 mm) square terminals on 0.100" (2.54 mm) pin spacing

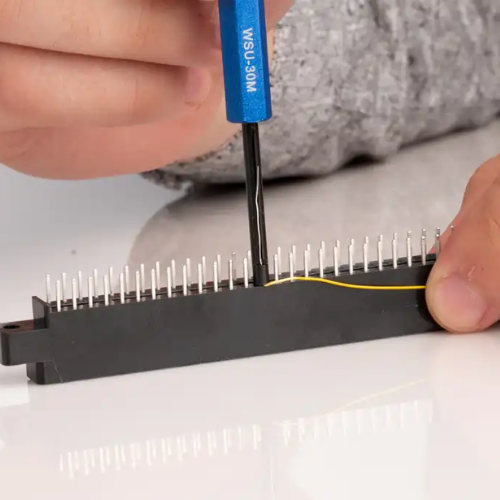

⦿ Compact and convenient design for precise wire wrapping in areas where power tools are impractical

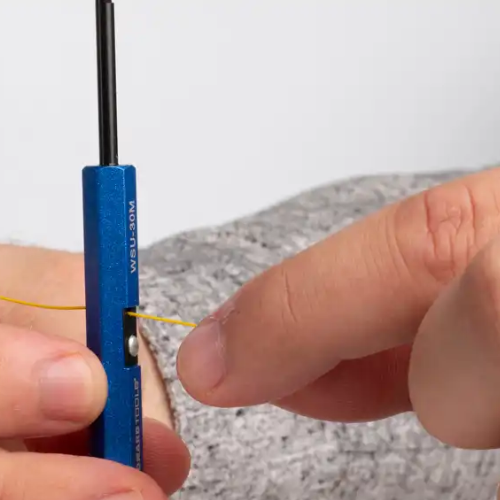

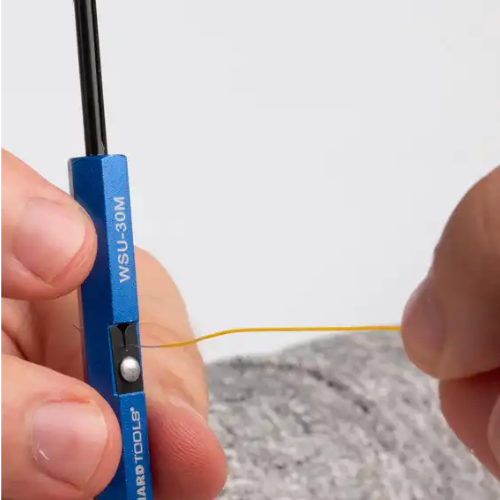

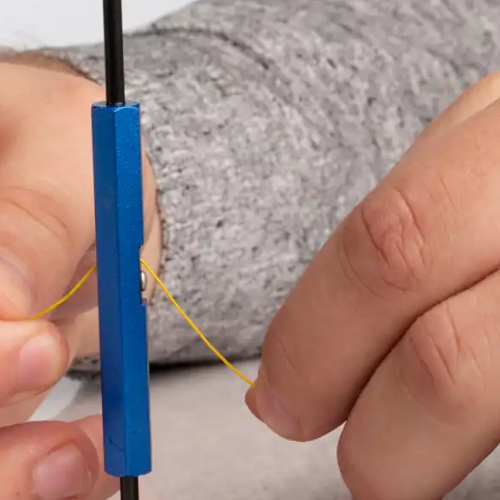

⦿ Features patented built-in wire-stripping blades for quick and effortless wire stripping

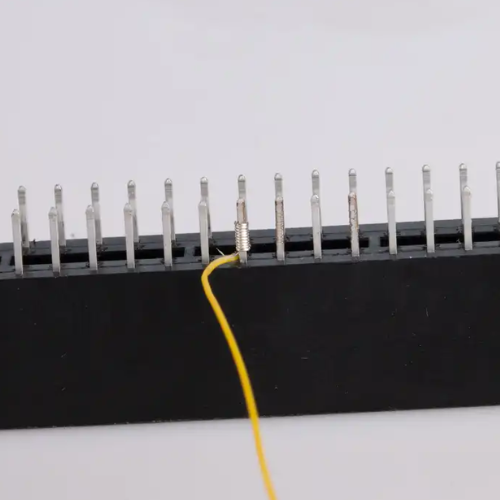

⦿ A modified wrap delivers 1.5 to 2 turns of insulation during wire wrapping
⦿ The lightweight plastic handle ensures easy portability and comfortable handling
Download PDF Spec Sheet
