30 AWG Kynar Yellow Wire R-30Y-0050 (50 FT) (Pack of 3)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Kynar Wire |
| UPC | 811490012530 |
| Insulation Type | Kynar |
| Insulation Thickness | 0.005" (0.127 mm) |
| Wire Gauge | 30 AWG (0.25 mm) |
| Overall Diameter | 0.020" (0.50 mm) |
| Standards | UL 1423 |
| Voltage | Not Rated |
| Reel Length | 50 ft (15.24 meters) |
| Dimensions | 1.65 in x 1.65 in x 0.78 in |
| Part Number | R-30Y-0050 |

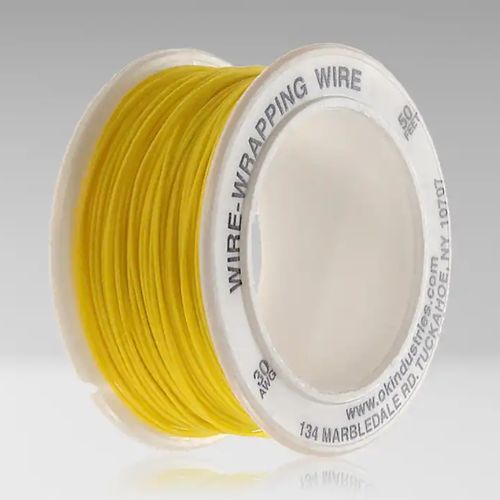

30 AWG Kynar Yellow Wire
Description:

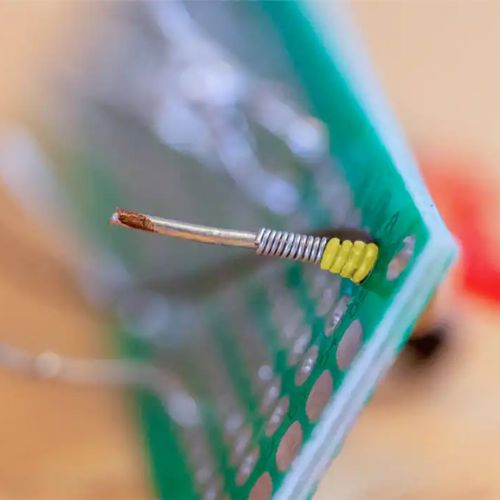

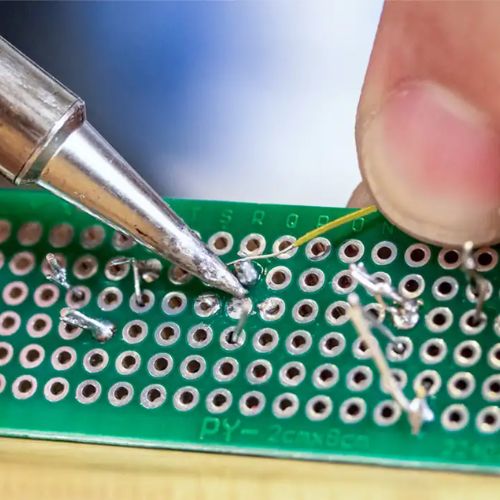

Kynar wire is commonly used in applications where flexibility, strength, and low weight are essential, making it well-suited for wire wrapping, power supplies, medical devices, and aerospace systems. Its lightweight construction and reduced diameter also make it a popular choice for circuit board prototyping. The Kynar insulation delivers excellent mechanical performance across a wide temperature range and provides strong resistance to numerous chemicals, including most inorganic and organic acids, bases, alcohols, halogenated solvents, and both aliphatic and aromatic hydrocarbons. These properties make Kynar wire a reliable solution for even the harshest environmental conditions.
Features:
⦿ OHFC (Oxygen-Free High Conductivity) silver-plated copper conductor ensures superior electrical conductivity and flexibility
⦿ Kynar insulation offers high temperature resistance (up to 105°C) and exceptional abrasion resistance
⦿ UL 1423 compliant, meeting or exceeding industry standards
