30 AWG Kynar White Wire R30W-1000 (1000 FT)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Kynar Wire |
| UPC | 811490012769 |
| Insulation Type | Kynar |
| Insulation Thickness | 0.005" (0.127 mm) |
| Wire Gauge | 30 AWG (0.25 mm) |
| Overall Diameter | 0.020" (0.50 mm) |
| Standards | UL 1423 |
| Voltage | Not Rated |
| Reel Length | 1000 ft (304.8 meters) |
| Dimensions | 2.85 in x 2.85 in x 2.4 in |
| Part Number | R30W-1000 |

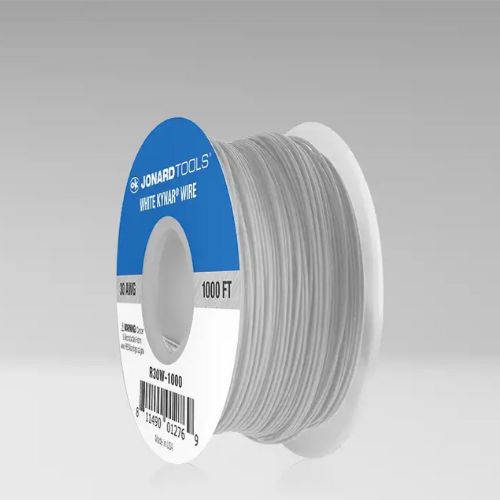

30 AWG Kynar White Wire
Description:

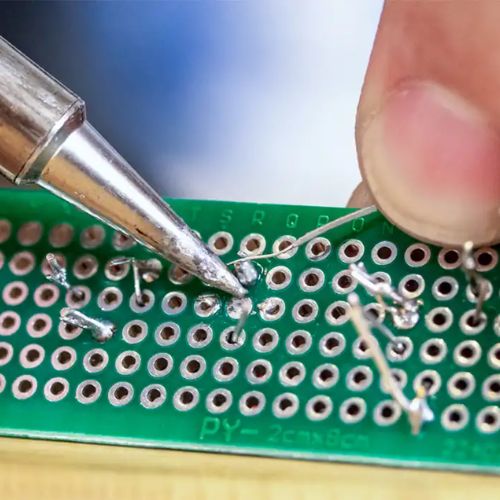

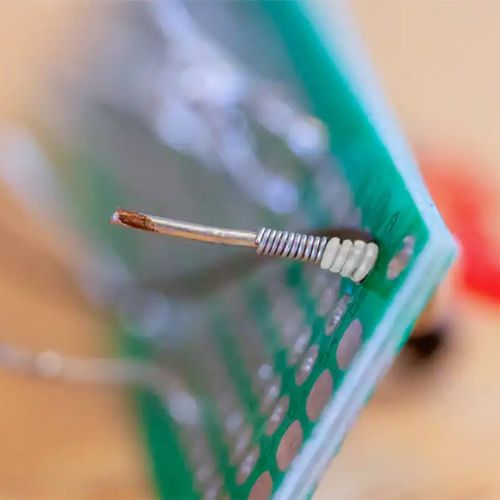

Kynar wire is widely used in applications requiring flexibility, strength, and low weight, such as wire wrapping, power supplies, medical equipment, and aerospace systems. Its lightweight design and reduced diameter also make it a popular choice for circuit board prototyping. The Kynar insulation offers outstanding mechanical performance across a broad temperature range and provides excellent resistance to a wide variety of chemicals, including most inorganic and organic acids, bases, alcohols, and halogenated solvents, as well as aliphatic and aromatic hydrocarbons. These attributes make Kynar wire a reliable solution for even the most demanding and harsh environmental conditions.
Features:
⦿ OHFC silver-plated copper conductor for outstanding conductivity and flexibility
⦿ Kynar insulation rated up to 105 °C with excellent abrasion resistance
⦿ UL 1423 compliant (meets or exceeds standards)
Download PDF Spec Sheet
