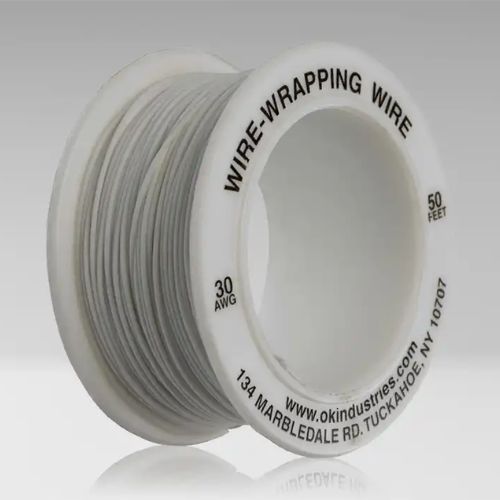

30 AWG Kynar White Wire R-30W-0050 (50 FT)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Kynar Wire |
| UPC | 811490012547 |
| Insulation Type | Kynar |
| Insulation Thickness | 0.005" (0.127 mm) |
| Wire Gauge | 30 AWG (0.25 mm) |
| Overall Diameter | 0.020" (0.50 mm) |
| Standards | UL 1423 |
| Voltage | Not Rated |
| Reel Length | 50 ft (15.24 meters) |
| Dimensions | 1.65 in x 1.65 in x 0.77 in |
| Part Number | R-30W-0050 |
30 AWG Kynar White Wire
Description:

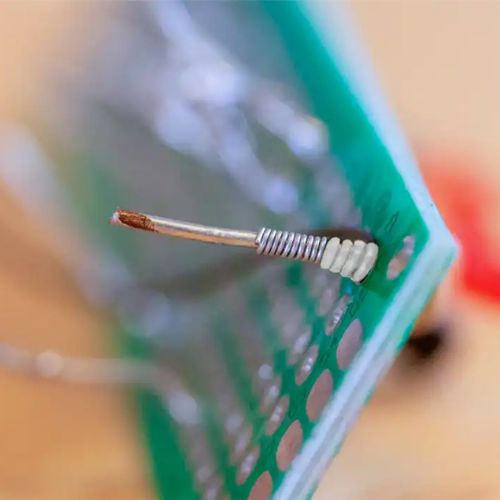

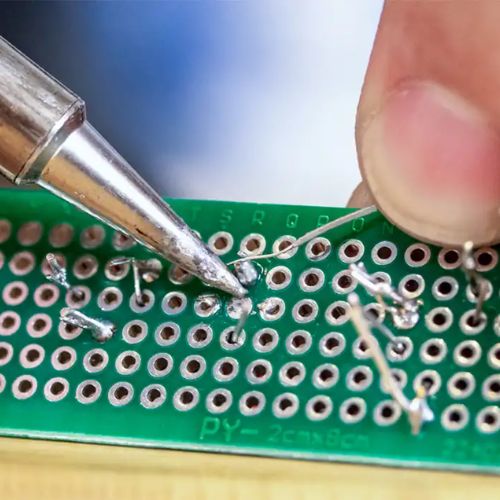

Kynar wire is commonly used in applications requiring flexibility, strength, and low weight, making it ideal for wire wrapping, power supplies, medical devices, and aerospace systems. Its smaller diameter and lightweight design also make it a popular choice for circuit board prototyping.
The Kynar insulation delivers excellent mechanical performance across a wide temperature range and offers strong resistance to numerous chemicals, including most inorganic and organic acids, bases, alcohols, halogenated solvents, and both aliphatic and aromatic hydrocarbons. These qualities make Kynar wire a dependable option even in the most demanding environmental conditions.
Features:
⦿ OHFC (Oxygen-Free High Conductivity) silver-plated copper conductor ensures outstanding electrical conductivity and flexibility
⦿ Kynar insulation provides high temperature resistance (up to 105°C) with excellent abrasion resistance
⦿ Meets or exceeds UL 1423 standards for quality and safety
Download PDF Spec Sheet
