Product Information
Specification
| Type | Kynar Wire |
| UPC | 811490012448 |
| Insulation Type | Kynar |
| Insulation Thickness | 0.005" (0.127 mm) |
| Wire Gauge | 30 AWG (0.25 mm) |
| Overall Diameter | 0.020" (0.50 mm) |
| Standards | UL 1423 |
| Voltage | Not Rated |
| Reel Length | 100 ft (30.48 meters) |
| Dimensions | 2.79 in x 2.79 in x 1.28 in |
| Part Number | R30R-0100 |

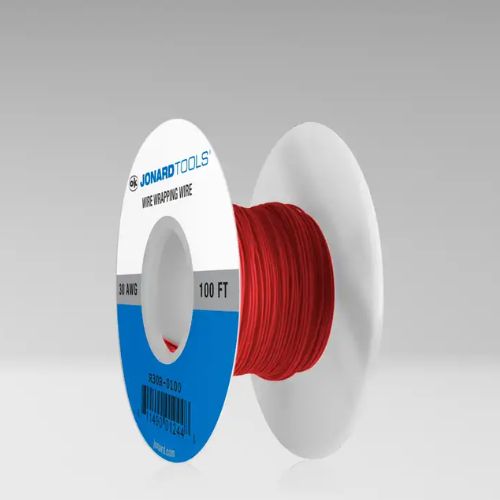

30 AWG Kynar Red Wire
Description:

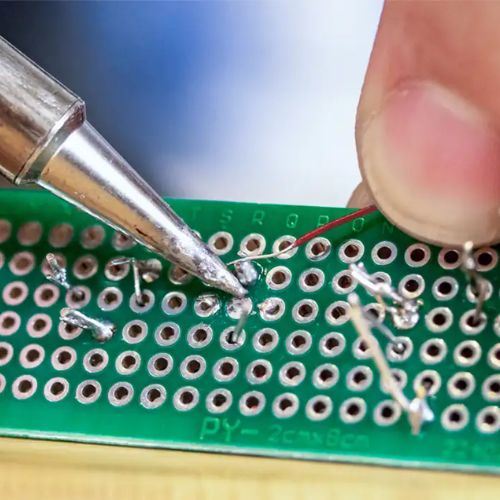

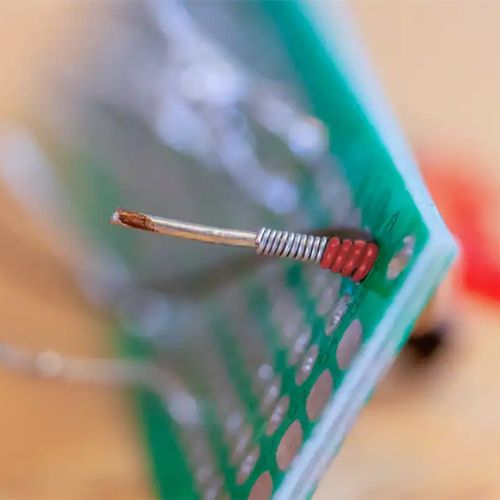

Kynar wire is designed for applications where flexibility, strength, and low weight are essential, making it ideal for wire wrapping, power supplies, medical equipment, and aerospace systems. Its smaller diameter and lightweight design also make it a preferred option for circuit board prototyping.
The Kynar insulation offers excellent mechanical performance across a wide temperature range and provides strong resistance to a broad spectrum of chemicals, including most inorganic and organic acids, bases, alcohols, halogenated solvents, and both aliphatic and aromatic hydrocarbons. These properties make Kynar wire a dependable choice even in the harshest environmental conditions.
Features:
⦿ OHFC silver-plated copper conductor for outstanding conductivity and flexibility
⦿ Kynar insulation rated up to 105 °C with excellent abrasion resistance
⦿ UL 1423 compliant (meets or exceeds standards)
Download PDF Spec Sheet
