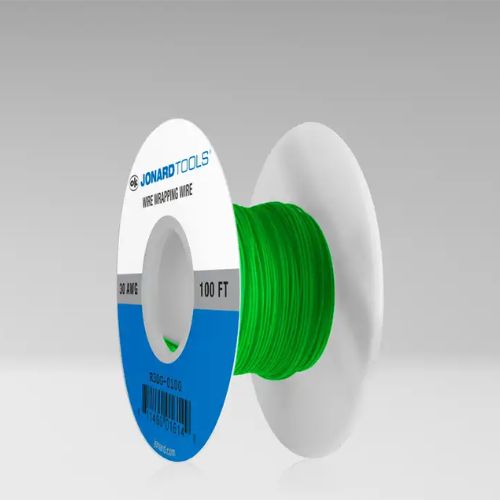

30 AWG Kynar Green Wire R30G-0100 (300 FT)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Kynar Wire |
| UPC | 811490016149 |
| Insulation Type | Kynar |
| Insulation Thickness | 0.005" (0.127 mm) |
| Wire Gauge | 30 AWG (0.25 mm) |
| Overall Diameter | 0.020" (0.50 mm) |
| Standards | UL 1423 |
| Voltage | Not Rated |
| Dimensions | 2.79 in x 2.79 in x 1.28 in |
| Part Number | R30G-0100 |
30 AWG Kynar Green Wire
Description:

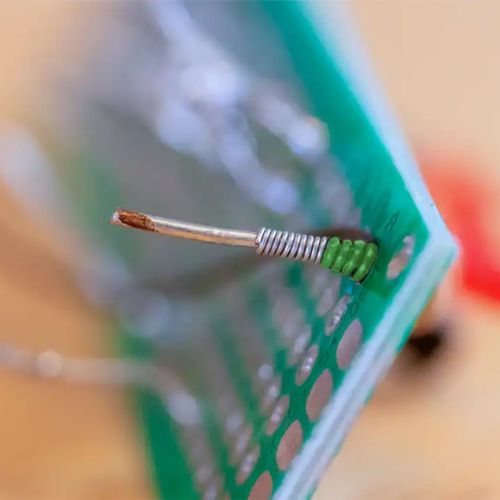

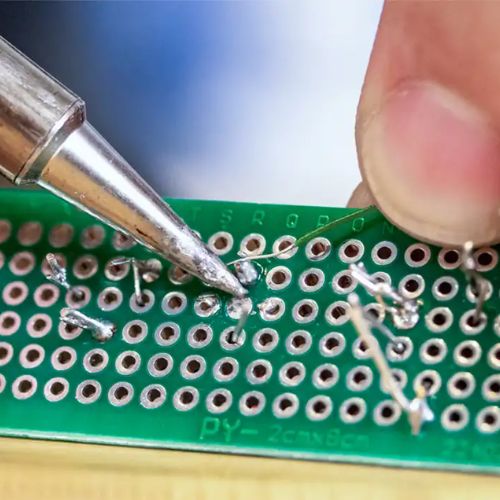

Kynar wire is designed for applications requiring flexibility, strength, and low weight, making it ideal for wire wrap, power supplies, medical equipment, and aerospace systems. Its smaller diameter and lightweight design also make it a popular choice for circuit board prototyping. Kynar® insulation offers excellent mechanical performance across a broad temperature range and resists a wide variety of chemicals—including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic or aromatic hydrocarbons. These properties ensure reliable performance even in the harshest environments.
Features:
⦿ OHFC (oxygen-free high conductivity) silver-plated copper conductor for outstanding electrical conductivity and flexibility
⦿ Kynar insulation with high-temperature resistance (up to 105°C) and superior abrasion resistance
⦿ Meets or exceeds UL 1423 standards
