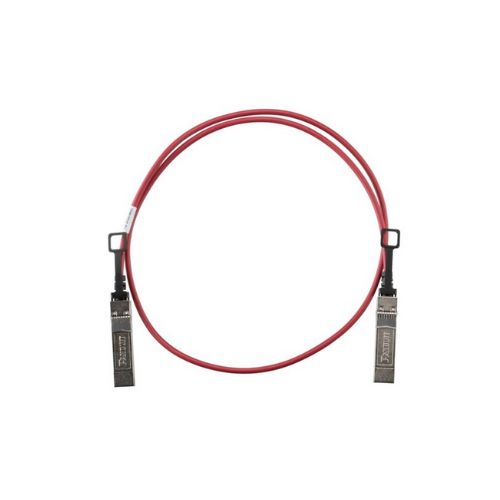

30 AWG 2.5M Direct Attach Cable Assembly Red PSF2PZA2.5MRD
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
• This direct attach passive copper cable assembly is equipped with factory-terminated SFP28 passive modular connectors on both ends, supporting 25G data transmission.
• The high-speed twinaxial cable features a 2-pair configuration, 30 AWG wire gauge, and a length of 2.5 meters, ensuring reliable and efficient connectivity
Also Known As:
DAC Assembly, Passive Copper Cable, SFP28 Twinax Cable, Direct Attach Cable Assembly, 2.5M Direct Attach Cable.
Specification:
| Product Type | Direct Attach Cable Assembly |
| Jacket Material | PVC |
| Conductor Gauge (AWG) | 30 |
| Conductor Gauge (kcmil) | 0.1005 |
| Connector 1 Type | SFP28 |
| Connector 2 Type | SFP28 |
| Overall Length (ft.) | 8.2 |
| Overall Length (m) | 2.5 |
| Nominal Diameter (In.) | 0.24 |
| Nominal Diameter (mm) | 6.1 |
| Bend Radius (In.) | 1.2 |
| Bend Radius (mm) | 30.48 |
| Number of Connector 1 Ports | 1 |
| Number of Connector 2 Ports | 1 |
| Color | Red |
| UPC | 613056777699 |
Features:
• 100% performance tested - confidence that each assembly delivers specified performance for ensured network availability
• Compliant to SFF-8402, SFF-8432 and SFF-8472 - ensuring 25 Gbps performance when mated to any SFF-8402 SFP28 compliant host port
• Low latency performance - ideal for high performance computer clustering and other latency sensitive applications
• Low profile - robust easy-to-use connector latching feature allows easy installation in belly-to-belly high density installations
• Small diameter cable design - enables proper cable management and improved air flow
• Built-in strain relief - ensures proper bend radius control for reliable deployment
