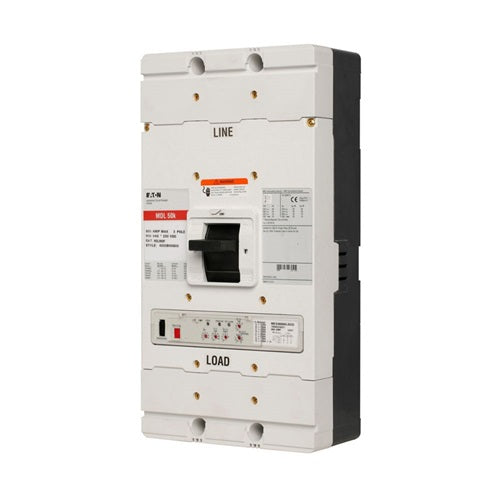

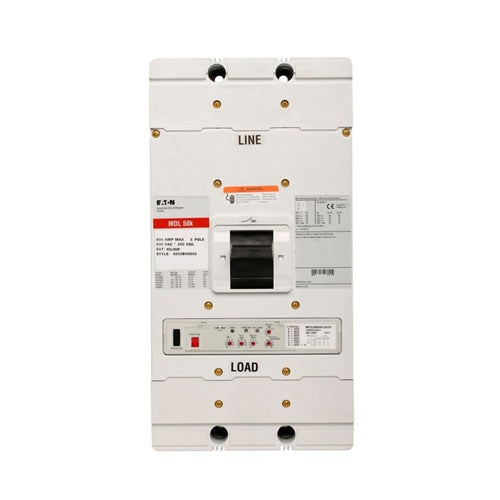

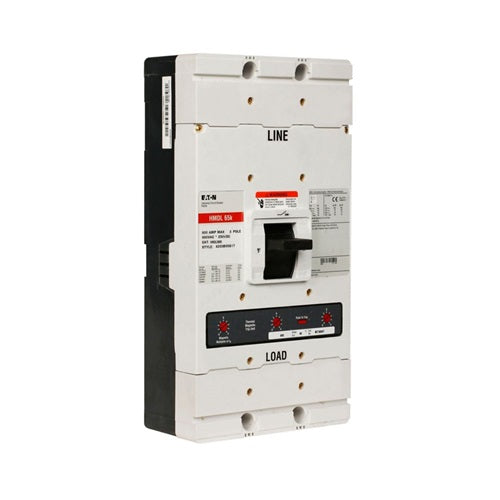

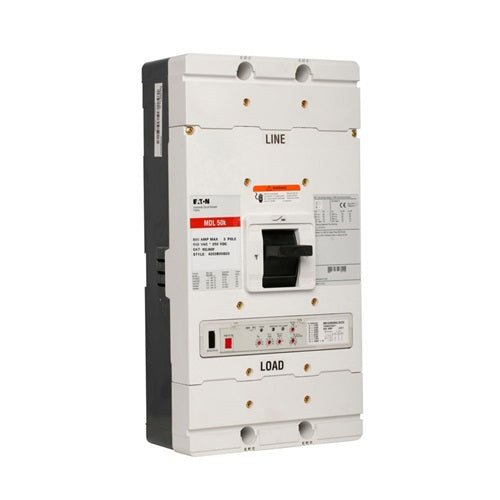

3 Pole Series C M-frame Molded Case Circuit Breaker MDL3800
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
Eaton Series C complete molded case circuit breaker, MDL-frame, MDL, Complete breaker, Fixed thermal, Fixed magnetic trip, Three-pole, 800A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 50 kAIC at 480 Vac, 50/60 Hz.
Specifications :
| Amps | 800 Amp |
|---|---|
| Breaker Interrupt Rating 1 | 65KA 240VAC |
| Breaker Interrupt Rating 2 | 50KA 480VAC |
| Breaker Interrupt Rating 3 | 25KA 600VAC |
| Breaker Line Side Term Method | Lugs |
| Breaker Load Side Term Method | Lugs |
| Category | Circuit Breakers |
| Category Standards | UL Listed |
| Circuit Breaker Type | Series C Molded Case Circuit Breaker |
| Frame | M-Frame |
| Height | 8.3 |
| In Stock | Yes |
| Length | 18.6 |
| Manufacturer | Eaton |
| Maximum Interrupt Rating | 25KA 600VAC |
| Number of Poles | 3 Pole |
| Product Description | 600Volt, 800Amp, 3-Pole |
| Trip Type | Thermal Magnetic |
| UNSPSC | 39121616 |
| UPC | 782114586006 |
| Volts | 600V |
| Width | 11.1 |
Features :
• Patented contact design features high pressure "blow open" action, resulting in superior performance
• Circuit breakers significantly outperform the calculations listed in the institute of electrical and electronic engineers (IEEE) standard 1584-2002, guide for performing arc flash hazard calculations
• Suitable for reverse feed application
• Fixed instantaneous trip
• 65 kA at 240 VAC, 50 kA at 480 VAC interrupt rating
