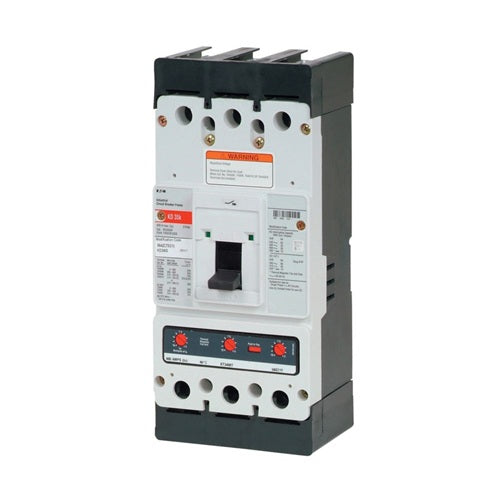

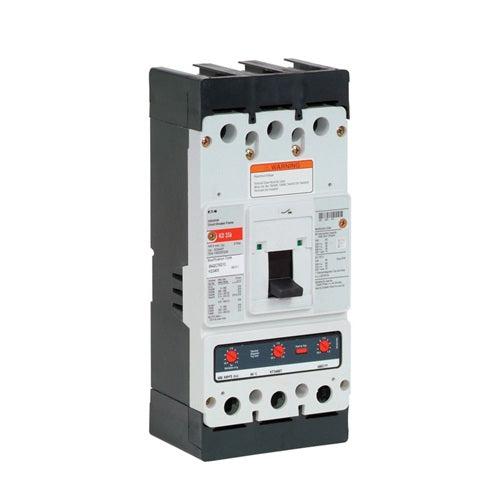

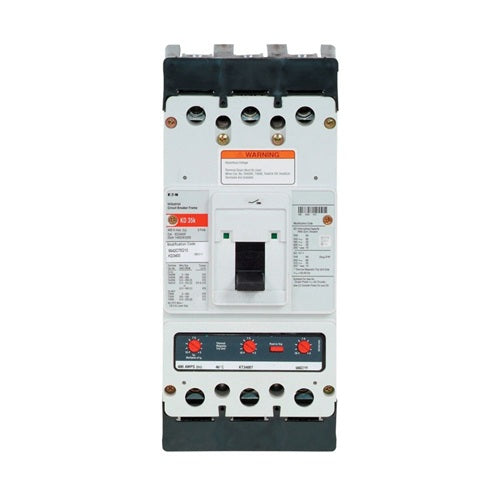

3 Pole Series C K-frame Molded Case Circuit Breaker KD3250
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
Eaton Series C K-frame molded case circuit breaker, 250 A, Three-pole, 600 Vac, 250 Vdc, 35 kAIC at 480V, Interchangeable electronic trip, KD breaker.
Specifications :
| Amps | 250 Amp |
|---|---|
| Breaker Interrupt Rating 1 | 65KA 240VAC |
| Breaker Interrupt Rating 2 | 35KA 480VAC |
| Breaker Interrupt Rating 3 | 25KA 600VAC |
| Breaker Line Side Term Method | Lugs |
| Breaker Load Side Term Method | Lugs |
| Category | Circuit Breakers |
| Category Standards | UL Listed |
| Circuit Breaker Type | Series C Molded Case Circuit Breaker |
| Frame | K-Frame |
| Height | 6 |
| In Stock | Yes |
| Length | 12 |
| Manufacturer | Eaton |
| Maximum Interrupt Rating | 25KA 600VAC |
| Number of Poles | 3 Pole |
| Product Description | 600Volt, 250Amp, 3-Pole |
| Trip Type | Thermal Magnetic |
| UNSPSC | 39121616 |
| UPC | 786679349168 |
| Volts | 600V |
| Width | 7.25 |
Features :
• Type: KD3250 – This is a model in the Series C K-Frame line of molded case circuit breakers from Siemens (formerly known as I-T-E).
• Poles: It is a 3-pole breaker, which means it is designed for three-phase electrical systems, providing protection for three live wires or phases.
• Frame Size: K-Frame – This denotes a medium frame size, typically offering higher interrupting capacities and larger frame sizes compared to smaller breakers, while still being compact enough for most commercial and industrial applications.
• Current Rating: The KD3250 has a 250A (amperes) rating, which means it can handle continuous current up to 250 amps.
• Voltage Rating: It is typically rated for 600V AC operation, which is suitable for most commercial and industrial systems.
• Interrupting Rating: It has a high short-circuit interrupting rating, often between 35kA to 65kA, meaning it can safely interrupt a fault current in case of a short circuit, helping to protect downstream equipment from damage.
