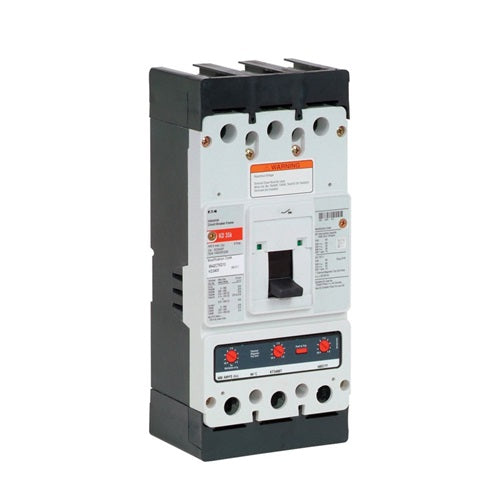

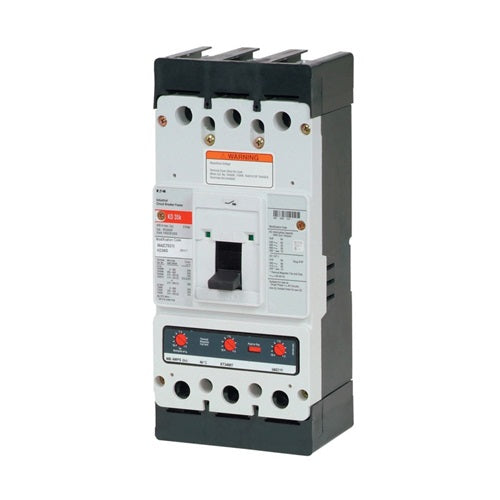

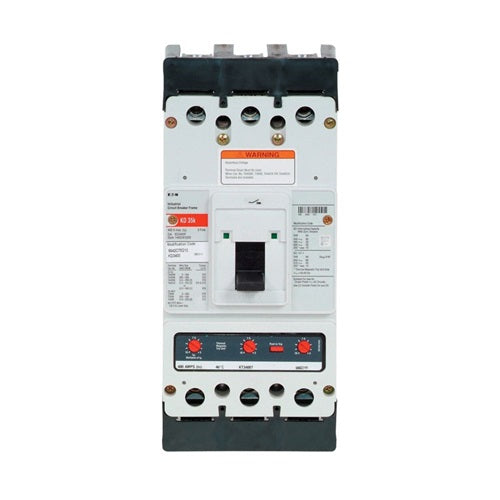

3 Pole Series C K-frame Molded Case Circuit Breaker KD3200
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
Eaton Series C complete molded case circuit breaker, K-frame molded case circuit breaker, 200 A, Three-pole, 600 Vac, 250 Vdc, 35 kAIC at 480V, Interchangeable electronic trip, KD breaker.
Specifications :
| Amps | 200 Amp |
|---|---|
| Breaker Interrupt Rating 1 | 65KA 240VAC |
| Breaker Interrupt Rating 2 | 35KA 480VAC |
| Breaker Interrupt Rating 3 | 25KA 600VAC |
| Breaker Line Side Term Method | Lugs |
| Breaker Load Side Term Method | Lugs |
| Category | Circuit Breakers |
| Category Standards | UL Listed |
| Circuit Breaker Type | Series C Molded Case Circuit Breaker |
| Frame | K-Frame |
| Height | 6.5 |
| In Stock | Yes |
| Length | 12.5 |
| Manufacturer | Eaton |
| Maximum Interrupt Rating | 25KA 600VAC |
| Number of Poles | 3 Pole |
| Product Description | 600Volt, 200Amp, 3-Pole |
| Trip Type | Thermal Magnetic |
| UNSPSC | 39121616 |
| UPC | 786679349144 |
| Volts | 600V |
| Width | 7 |
Features :
• Current Rating: Typically rated at 3200 A, suitable for high-capacity applications.
• Three-Pole Design: Specifically designed for three-phase systems, providing balanced protection for all phases.
• Trip Characteristics: Series C features standard trip settings for overcurrent protection, allowing for selective coordination in electrical systems.
• Short-Circuit Protection: Provides robust protection against short circuits, helping to minimize damage to connected equipment.
• Thermal-Magnetic Operation: Combines thermal and magnetic trip elements for reliable overload and short-circuit protection.
• Adjustable Settings: Many Series C breakers offer adjustable settings for trip points, allowing customization for specific applications.
• Wide Range of Accessories: Compatible with various accessories like shunt trips, under-voltage releases, and auxiliary contacts for enhanced functionality.
• Durability: Constructed with a molded enclosure that provides resistance to environmental factors, ensuring longevity in demanding conditions.
• Easy Installation: Designed for straightforward mounting and wiring, facilitating quicker installation in electrical panels.
• Compliance: Meets industry standards and certifications, ensuring safety and reliability.
