3 Pole Series C J-frame molded case circuit breaker JDB3250
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

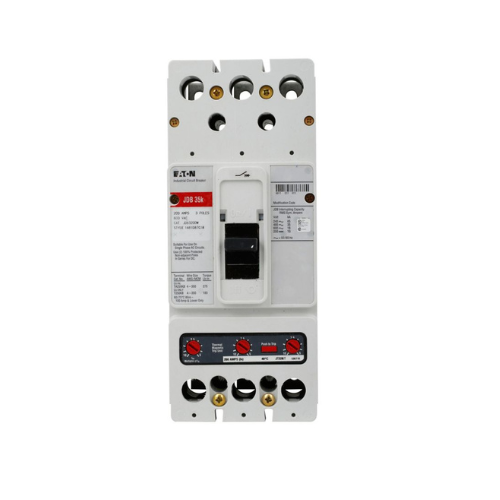

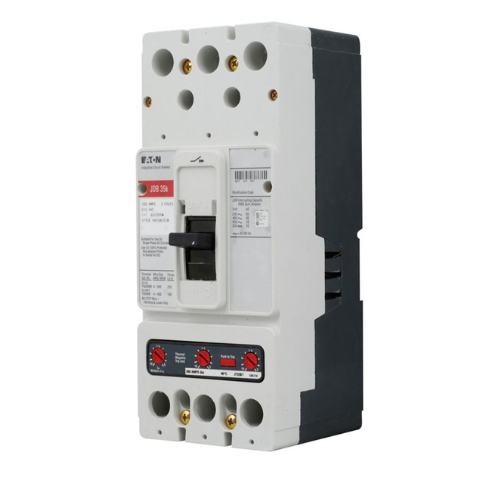

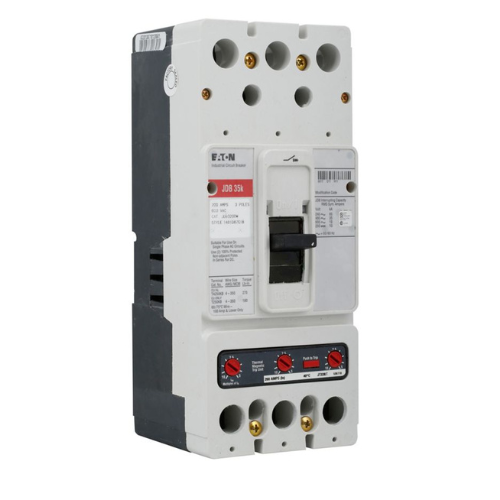

The Eaton JDB3250 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 250 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 35kA at 480VAC, 18kA at 600VAC, 10kA at 250VDC. The JDB3250 has a feed-thru connection type and includes LI - long time and instantaneous functions.
Specifications :
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | J |
| Amperage | 250 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 65 Kiloampere 240VAC, 35 Kiloampere 480VAC, 18 Kiloampere 600VAC, 10 Kiloampere is a 250VDC |
| Trip Setting | Adjustable 5-10 Times Continuous Ampere Rating |
| Standard Lug Type | Aluminum Line and Load End Terminals Standard |
Features :
• Ranges from 15‑2500 amperes
• High‑speed "blow‑open" action
• Available for 600 VAC or 250 VDC systems
• Current ratings up to 2500A
• Outperform calculations listed in IEEE
Download PDF Spec Sheet
