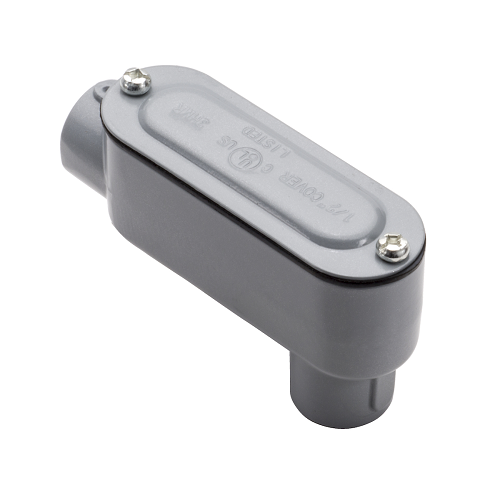

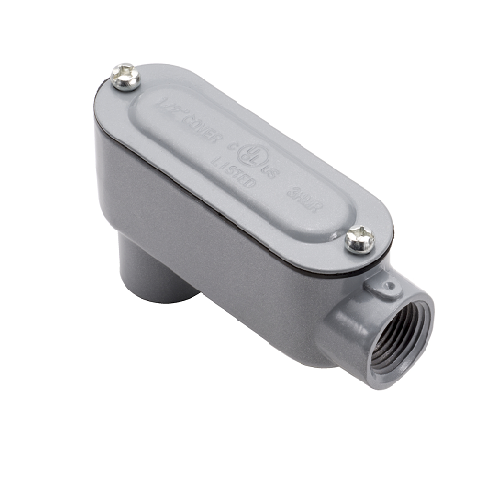

3/4" Rigid Conduit Bodies LB Type With Cover And Gasket LB2CG (Pack of 30)

Product Information

Specification

About :

The "3/4" in the name refers to the internal diameter of the conduit body, which is 3/4 inches. This size is suitable for accommodating wires of the corresponding gauge that can fit within a 3/4 inch diameter. These conduit bodies are often made of rigid, high-quality materials like galvanized steel, aluminum, or PVC. The choice of material can depend on the specific requirements of the installation, such as strength, durability, and resistance to environmental factors. The cover is usually a flat, removable piece that allows access to the wires inside. The gasket, which is often made of a rubber or neoprene material, ensures a tight, weatherproof seal when the cover is attached. This is crucial in outdoor or wet locations to protect the electrical wiring from moisture and dust.

Also known as:

3/4-Inch Rigid Conduit Body LB-Type with Cover and Gasket, 3/4" Rigid Electrical Conduit LB Fitting, 3/4 Inch Threaded LB Conduit Body, 3/4" Cast Iron LB Conduit Body.

Specification:

Material : Powder Coated Die-Cast Copper Aluminum
Height : 2.43 Inch
width : 1.54 inch
Weight : 0.41 LBS
UPC : 751338208513

Features:

• Threaded LB type with cover and gasket
• NPT tapered hubs
• Suitable for use in concrete
• Suitable for use in wet locations
